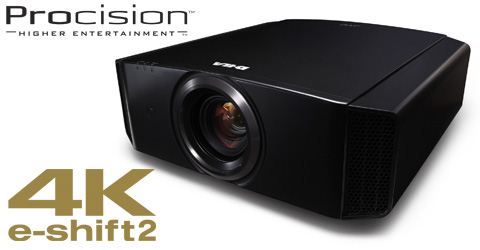

JVC Procision DLA-X75R THX 3D Projector

JVC Raises the Bar with 4K e-shift2

4K e-shift2 smashes through the high definition barrier, taking two-million pixel 1080p HD images, and up converting them to eight-million pixel 4K images. That’s four times the resolution of Full HD!

The THX 3D Display certified DLA-X75R includes all the performance you’ve come to expect from JVC. It uses three D-ILA devices to project a 4K Precision image and features an upgraded light engine with an improved wire grid polarizer to deliver amazing black level and 90,000:1 Native Contrast Ratio. “Native” means JVC does not use a dynamic iris, making it possible to reproduce the deepest blacks and vivid peak whites at the same time, for the most impactful images in each and every frame.

All new JVC Procision projectors are 3D enabled, and feature a wide range of 3D enhancements, including a brighter 3D picture and reduced 3D cross talk.

A 3D RF Emitter (PK-EM2, sold separately) syncs the projected image with JVC’s Active Shutter 3D RF Glasses (PK-AG3, sold separately) for a superior 3D experience, no matter what type of screen is used or how the home theater has been configured. By using RF technology, installation is simplified, and the available viewing range is increased substantially.

JVC offers impressive installation flexibility with a 2X Optical Zoom featuring motorized focus, zoom & lens shift settings. The X75R offers a Lens Memory function with ten memories that allow those settings to be stored for different picture formats. This makes it easy to view multiple picture formats, such as 16:9 HDTV and Cinemascope movies, at a constant image height on a cinemascope screen, without any annoying black bars.

The X75R has achieved THX certification. Simply selecting the THX mode allows optimized playback of either 2D or 3D content with no additional adjustment required. JVC further insures the highest performance by licensing the ISF C3 calibration mode. Along with 7 axis color management and a high precision pixel alignment system, it is possible to calibrate the X75R to the most exacting standards.

The Competitive Advantage

• Improved 4K e-shift2 for upconverted 3,840 x 2,160 precision
  • New 8 Band Detection 2K to 4K scaling
  • New MPC Control with 5 selectable 4K profiles
  • 1,920 x 1,080 content is up-converted to 3,840 x 2,160 (2D Mode Only)
  • Reduces or eliminates anti-aliasing and stair-stepping
  • Improves edge transition and enhances contrast in detail areas
  • Allows for closer viewing with no visible picture structure
• Highest NATIVE Contrast Ratio in class (90,000:1)
  • Provides deepest blacks and vivid peak whites at the same time
  • Does not use a dynamic iris
• THX 3D Display Certification
• ISF C3 Licensed
• 100% "Frame Addressing" provides brighter image reproduction in 3D
• 2 year warranty

Performance Features

• New Illumination System: 230W NSH lamp & new power supply
  • Up to 4,000 hour lamp life/low lamp mode
• 4th Generation Wire Grid Optical Engine minimizes light leakage
• Up to 255 Mode Screen Adjustment
• 7 Axis Color Management
• High Precision Pixel Alignment System
  • Enables adjustment down to 1/16th pixel
  • Adjustable on 121 points on the screen
• Advanced Color Profiles including Xenon Lamp Modes & Adobe RGB
• New Pincushion Control
• 120Hz Clear Motion Drive
• 23dB ultra low noise design (normal lamp mode)
• 1,200 lumens

3D Features

• Upgraded Cross Talk Cancelation Circuit
• 2D to 3D Converter
  • Developed from JVC's experience in broadcast 3D conversion systems
  • Allows 2D content to be converted to 3D in real time
  • Works on broadcast as well as packaged media
• Extensive 3D Input supported though HDMI
  • Frame Sequential: 1080 24p/50i/60i
  • Frame Sequential: 720 50p/60p
  • Side by Side: 1080 24p/50p/50i/60p/60i
  • Side by Side: 720 50p/60p
  • Top and Bottom: 1080 24p
  • Top and Bottom: 720 50p/60p
• Direct access to 3D modes from remote control
• No special screen needed for 3D playback
• New 3D RF Glasses and RF Emitter (Optional)
  • New RF Glasses: PK-AG3G (Optional)
  • New RF Emitter: PK-EM2G (Optional)
  • The DLA-X75 can also be used with the previous generation JVC IR Emitter & Glasses, (PK-EM1, PK-AG1, PK-AG2) although it is not possible to mix RF & IR accessories.

Convenience and Set-Up Features

• Automatic Lens Cover
• Wide Lens Shift functionality (V: 80%, H: 34%)
• 2X Zoom (1.4 to 2.8 throw ratio)
• Improved 10 Position Lens Memory for easy Cinemascope and 16:9 HDTV setup
• Motorized Focus, Zoom & Lens Shift
• New iOS App: Full remote control of the projector via iPhone, iPad
  or iPod Touch

Inputs & Outputs

• Dual 3D enabled HDMI v1.4a input with Deep Color and CEC
• Component Video
• RS-232C
• RJ45 LAN Connection
• 12V Trigger
• Wired Remote Input
• D-Sub, 15-Pin PC Input
