E2200IR
Channel Vision

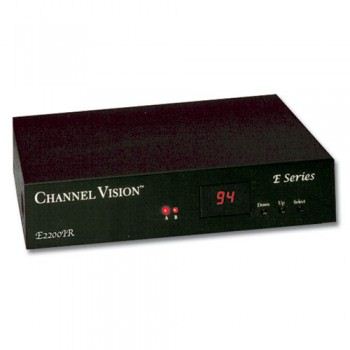

E2200IR
Channel Vision - E2200IR. 2 input Modulator w/integrated IR engine, wide channel range, push button select, LED display, video level adj, non-volitile memory. U/M: Each
Arizona: Special Order
Vegas: Special Order
Out of Stock




Key Features

  • 2-input modulator
  • Built-in IR over coax system
  • LED display and pushbutton programming
  • +25dBmV output

Technical Specifications

RF Modulator

  • PLL Synthesized Oscillator
  • Video NTSC
  • Audio L&R summed Monaural

RF Carriers

  • Freq. Stability 50kHz
  • Freq. Range UHF 471.25-855.25MHz
  • Ultraband 469.25-859.25MHz
  • Channels UHF 14-78, Ultraband 65-135
  • (Excluding 95-99)
  • Channel Width 6.0MHz
  • Audio Offset 4.5MHz 5kHz(NTSC)
  • 5.5MHz 5kHz(PAL-G)
  • Sidebands Double

RF Ouput

  • RF Carrier 25dBmV
  • Video Output 1Vpp
  • Audio Output 1V RMS
  • Video Performance
  • Differential Gain Less than 2% (0.2dB)
  • Operating Temps 0-50 degrees C
  • Signal/Noise Ratio >52dB

Spurious Output Rejection

  • Outside Carrier: +12MHz>70dBC
  • Inside Carrier: +12MHz>66dBC
  • Isolation: Greater than 70dB
Inputs
  • Video: 0.4V-2.7Vpp adjustable
  • Audio: 1V RMS
Connectors
  • Video Inputs: RCA Female
  • Audio Inputs: RCA Female
  • RF Output: F type Female
  • IR Outputs: 3.5mm
Transformer Input
  • Input Voltage: 120VAC, 60Hz
  • Power: 8 Watts
  • Output Voltage: 15VDC, 450mA
Exterior
  • Metal Case
Display
  • 2 digit channel display
Dimensions
  • Width: 7.88″
  • Depth: 4.75″(excl. connectors)
  • Height: 1.63″ (excl. rubber feet
