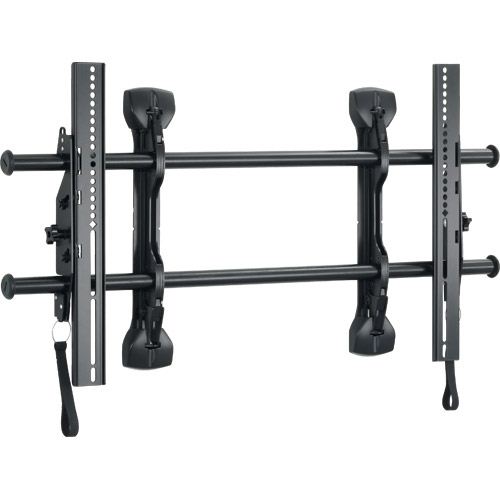

Chief LTMU

Large FUSION™ Micro-Adjustable Tilt Wall Mount

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and post-installation fine tuning for large flat panel screens.

• Provides low-profile, fingertip tilt
• Easy accessory attachment

Features

• ControlZone Leveling for post-installation fine tuning of height and leveling
• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
• Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
• ClickConnect offers an audible click when the screen safely engages with the mount
• Built-in cable stand provides easy access under the screen
• A full line of accessories can be installed with the mount and the entire unit can be adjusted together
• Provides integrated security, just add a padlock
• Ships with a custom hardware kit

Specifications

• Certifications: UL Listed
• Color: Black
• Lateral Shift: 17.5" (444.5mm)
• Manual Height Adjustment: 1
• Maximum Screen Thickness: 6"
• Minimum Depth: 1.99" (50.5mm)
• Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 895 x 505mm
• Orientation: Landscape
• Overall Dimensions (H x W x D): 16.5" x 34.4" x 2.0" (419 x 875 x 51mm)
• Post-Installation Leveling (Roll): Yes
• Shipping Weight: 21.95 lbs
• Solution Type: Universal
• Tilt: + 0° , - 12°
• Typical Screen Sizes: 37 - 63"
• Wall Stud Compatibility (inches): 12 - 34"
• Weight Capacity: 200 lbs (90.7kg)
