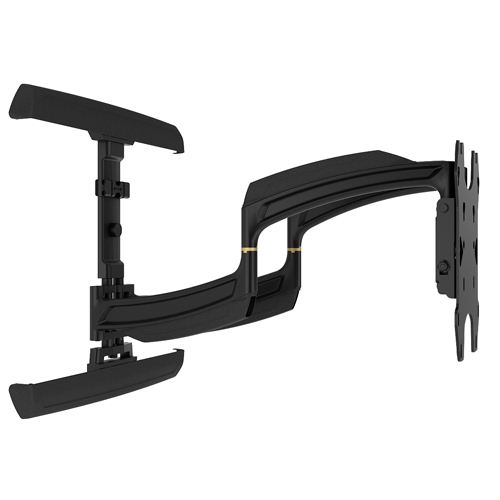

Chief TS525TU

Large THINSTALL Dual Swing Arm Wall Mount - 25" Extension

A lightweight, low-profile full-motion wall mount for TVs 37-58". Easily installs with one person by mounting the top rail and sliding on the assembly.

Features

• Ultra Low Profile Sleek design collapses to 1.8" (46 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
• Extends up to 25" (635 mm) Full extension maximizes viewing potential
• Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles
• Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
• Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
• Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

• Certifications: UL Listed
• Color: Black
• Lateral Shift: 16" (406.4mm)
• Manual Height Adjustment: 1
• Maximum Extension: 25" (635.mm)
• Maximum Screen Thickness: 5" (127mm)
• Minimum Depth: 1.5" (38.1mm)
• Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 800 x 400mm
• Orientation: Landscape
• Overall Dimensions (H x W x D): 20.7" x 29.5" x 1.5" (527 x 749 x 38mm)
• Pivot (numerical value): ±90° (depending on screen width)
• Post-Installation Leveling (Roll): Yes
• Shipping Weight: 55.00 lbs
• Solution Type: Universal
• Tilt: + ° , - 15°
• Typical Screen Sizes: 37 - 58"
• Wall Stud Compatibility (inches): 16
• Weight Capacity: 125 lbs (56.7kg)
