MWH6241S
Chief Manufacturing
MWH6241S
Chief MWH6241S - Medium Flat Panel Swing Arm Wall Mount- 25in Extension- Single stud mounting w/up to 4.5in lateral shift. Silver. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $459.00 Each
MAP: $3199.00 Each


 MWH6241S

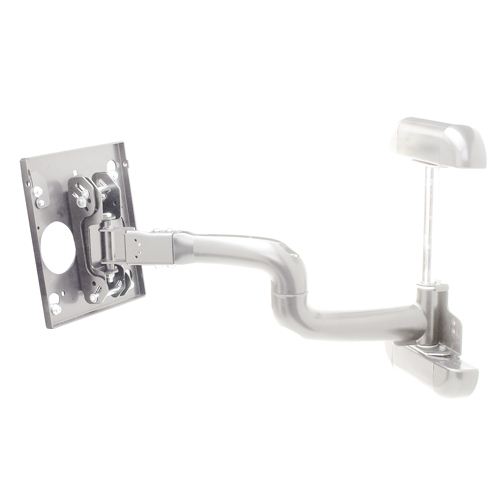

Medium Flat Panel Swing Arm Wall Mount - 25" Extension

This swing arm wall mount is great solution for flat panel display installations requiring more viewing flexiblity.

  • Mounts to a single stud for a more discrete installation
  • See the MWR for 16" center stud mounting and increased weight capacity



Features

  • Single stud mounting with up to 4.5 " lateral shift
  • Extends 24.88 " (632 mm) from wall and remains low profile in the home position
  • Chief exclusive ClickConnect mounting system provides simplified tooless latching with an audible click!
  • Centris Technology provides smooth, fingertip tilt adjustments
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall
  • CableTrac System provides a fast and effective way to route cables



Specifications

Certifications: UL Listed
Color: silver
Lateral Shift: 4.5" (114.3mm)
Maximum Extension: 24.88" (632.mm)
Minimum Depth: 3.43" (87.1mm)
Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Orientation: Landscape, Portrait
Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 87mm)
Post-Installation Leveling (Roll): Yes
Shipping Weight: 31.00 lbs
Solution Type: Custom
Tilt: + 5° , - 15°
Typical Screen Sizes: 30 - 55"
Wall Stud Compatibility (inches): Single Stud
Weight Capacity: 100 lbs (45.4kg)
