Chief Manufacturing

JWDUB

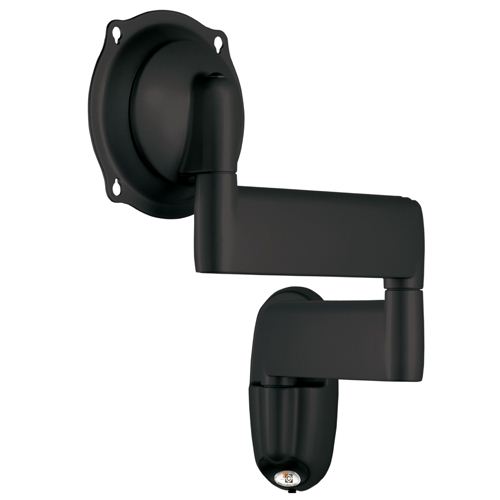

Chief JWDUB - Universal Flat Panel Dual Swing Arm Wall Mount, fits most 26in - 45in displays, black. U/M: each

Arizona: Special Order
Vegas: Special Order

Out of Stock

Description

JWDUB

Medium Flat Panel Swing Arm Wall Mount - 20" Extension

Provides a broad range of motion for viewing medium flat panel TVs and monitors from multiple angles. Standard solutions are for single wood stud installations. Additional versions available for 16" on center wood / metal studs and in-wall applications

Features

Centris Fingertip Tilt provides smooth tilt adjustment in all directions
Gravity-centered tilt self-adjusts to securely hold different display weights
Teardrop hole pattern makes mounting the screen quick and easy
Portrait and landscape screen installation
Smooth extension to achieve ideal viewing angle
Independently adjustable tension at pivot points for customized control
Folds in close to the wall for a low-profile appearance.
Quick, easy cable management
Sleek, attractive design hides all hardware
Ships assembled
Single stud wall mounting
Universal models available for VESA® 100 x 100 mm up to 400 x 400mm mounting patterns
MSB interface bracket can be purchased separately for non-VESA compatible screens

Specifications

Color:	Black
Maximum Extension:	20.38" (517.7mm)
Minimum Depth:	2.69" (68.3mm)
Mounting Pattern Compatibility (Universal Versions):	100 x 100mm - 400 x 400mm
Notes:	Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Orientation:	Landscape, Portrait
Overall Dimensions (H x W x D):	14.7" x 12.1" x 2.7" (373 x 308 x 68mm)
Post-Installation Leveling (Roll):	Yes
Shipping Weight:	15.80 lbs
Solution Type:	Universal
Tilt:	+ 15° , - 15°
Typical Screen Sizes:	26 - 45"
Wall Stud Compatibility (inches):	Single Stud
Weight Capacity:	75 lbs (34.kg)
