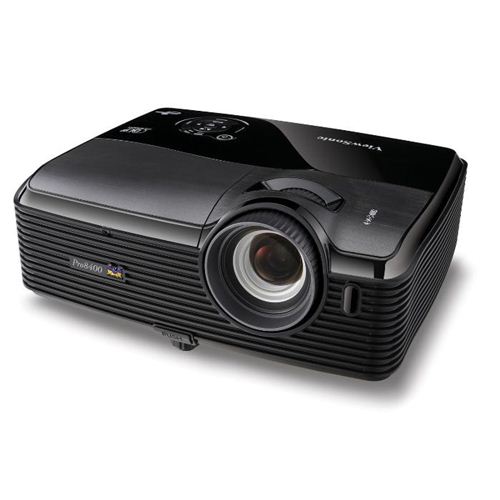

The ViewSonic® Pro8400 is an advanced high brightness DLP® installation projector which includes BrilliantColor™ technology to produce more vibrant colors. The Pro8400 delivers 4000 lumens with a 1920x1080 (1080p) superb image resolution, allowing it to shine in virtually any lighting situation. The Pro8400 provides maximum mounting flexibility with a wide 1.5X optical zoom adjustment and a multitude of connectivity options including Network Display, USB, and WiFi. The filter-less design and long lamp life provide for easy maintenance and low total cost of ownership.
How to enable Wi-Fi
Install the WPD-100 Wi-Fi Dongle - Learn More
Features
Advanced connectivity
With dual HDMI, component, composite and S-video inputs
Bright in virtually any setting with 4,000 lumens
Ultra-bright 4,000 lumen output makes this the perfect choice for large boardrooms, conference halls and auditoriums
BrilliantColor™ technology
Latest BrilliantColor™ technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video. The sophisticated 5-segment color (RGBWY) wheel provides greater color accuracy than standard DLP projectors with a 4-segment color wheel
Closed captioning
Integrated closed captioning decoder for the hearing impaired
Connect anywhere
Present up to 8 projectors at the same time or allow up to 4 presenters to connect to a single projector over wireless or RJ45 network
Give Greener presentations and save
Use the Eco-mode to achieve lower power consumption, reduce overall noise and extend lamp life. Filter less design saves costs and maintenance.
Network control through RJ-45
Stay connected
Supports multiple video timing formats from SD (NTSC, PAL & SECAM) to HD 1080p
- Type
- 0.7" Digital Micromirror Device (DLP™)
- Resolution
- 1920x1080 (1080p)
- Lens
- 1.5x Manual optical zoom / Manual optical focus
- Zoom Factor
- N/A
- Keystone
- Vertical digital keystone correction: +/- 20 degrees
- Display Size
- 30"-300" / 0.76m-7.6m
- Throw Distance
- 0.9m-10m / 3ft-32.8ft
- Throw Ratio
- 1.4 - 2.14:1
- Lamp Type
- 280 watt
- Lamp Life (normal/eco-mode)
- 4000 / 5000* hours
- Brightness
- 4000 ANSI Lumens
- Contrast Ratio
- 2600:1 (typ), 3000:1 (dynamic)
- Aspect Ratio
- 16:9 (native) and 4:3
- Color Wheel
- N/A
- Color Depth
- N/A
- Color Gamut
- 70% NTSC 1931 CIE
- Computer and Video
- NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i and 1080p (24fps, 25pfs and 30fps)
- Frequency
- Fh: 31-91KHz, Fv: 48-85Hz
- PC
- VGA to 1080p
- Mac®
- Up to 1080p
- Audio Input
- 3.5mm mini jack
- Audio Out
- 3.5mm mini jack
- RGB Input
- 15-pin mini D-sub (x2)
- Composite Input
- RCA jack
- S-Video Input
- 4-pin mini-DIN
- Component
- RCA (x3)
- RGB Output
- 15-pin mini D-sub
- Control
- RS-232 (DB-9)
- Digital
- HDMI 1.3 (x2)
- Network
- RJ-45
- USB
- Mini-B for direct presentation from computer Type A supports JPEG, BMP, TIFF, PNG, GIF from USB flash drive
- Mic-In
- N/A
- Screen Trigger
- 0.35 plug (12V/1A)
- Card Reader
- N/A
- Speakers
- 10W (x2)
- Amplifier
- N/A
- Voltage
- 100-240VAC (Auto Switching), 50/60Hz (universal)
- Consumption
- 360W (max) / <1W (stand-by mode)
- Basic
- Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, auto, mode/enter, source
- OSD
- Picture: Brightness, Contrast, Color Setting, Keystone, Aspect Ratio, Image, White Intensity, Gamma Computer Image: Frequency, Tracking, H Position, V Position Video Image: Saturation, Sharpnes, Tint Setting: Menu Position, Projection, Signal Type, Lamp Hour, Lamp Hour Reset, Filter Mode, Filter Hours, Filter Hours Reset, Power Saving, Auto Source, Eco-mode, High Altitude, OSD Timeout Advance: Blank Screen, Password Word, Screen Capture, Start up Screen, Digital Zoom, DCR, Close Captions
- Temperature
- 32°-104° (0°C-40°C)
- Humidity
- 10%-90% (non-condensing)
- Altitude
- 0-6,000 ft (1,800m), operational up to 10,000 ft (3048m)
- Normal
- 33dB
- Eco-Mode
- 29dB
- Physical
- 13.1 x 4.8 x 10.4 (in) / 332.7x 121.9 x 264.2 (mm)
- Packaging
- 16.3 x 7.5 x 14.8 (in) / 414 x190.5 x 375.9 (mm)
- Net
- 8.5 lb (3.86 kg)
- Gross
- 11.8 lb (5.36 kg)
CB, RoHS, SVHC, WEEE, UL/cUL, FCC-B, ICES-004, TUV-S (Argentina), NOM, PSB, C-tick, KC, CE, GOST-R, Hygienic, UKrSEPRO, CCC
ViewSonic projector, power cable, VGA cable, HDMI cable, remote control/laser with batteries, lens cap, Quick Start Guide, ViewSonic Wizard DVD (with User Guide), soft carrying case
3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange® service
