BR1300G
APC
BR1300G

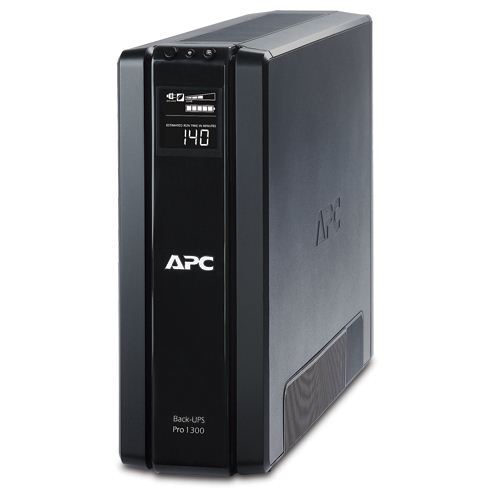

APC - BR1300G. Back-UPS Pro. 780 Watt/1300VA. U/M: Each
Arizona: In Stock
Vegas: Out of Stock
Out of Stock




Output

Output Power Capacity
780 Watts / 1300 VA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave
Output Connections
(5) NEMA 5-15R (Battery Backup) NEMA 5-15R
(5) NEMA 5-15R (Surge Protection) NEMA 5-15R

Input

Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P NEMA 5-15P
Cord Length
6 feet (1.83 meters)

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
8 hour(s)
Replacement Battery
APCRBC124
RBC™ Quantity
1
Runtime Graph




Communications & Management

Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
354 Joules
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Data Line Protection
Cable modem / Video protection, Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
11.85 inches (301 mm)
Maximum Width
4.41 inches (112 mm)
Maximum Depth
14.96 inches (380 mm)
Net Weight
23.10 lbs. (10.50 kg)
Shipping Weight
28.27 lbs. (12.85 kg)
Shipping Height
15.24 inches (387 mm)
Shipping Width
9.37 inches (238 mm)
Shipping Depth
19.21 inches (488 mm)
Master Carton Units
1.00
SCC Codes
1073130426876 2
Units per Pallet
24.00

Environmental

Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-30000 feet (0-9000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
45.00 dBA

Conformance

Regulatory Approvals
ENERGY STAR (USA), FCC Part 15 Class B, NOM, TUV, UL 1778
Standard Warranty
3 years repair or replace
Equipment protection policy
Lifetime : $150000

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
