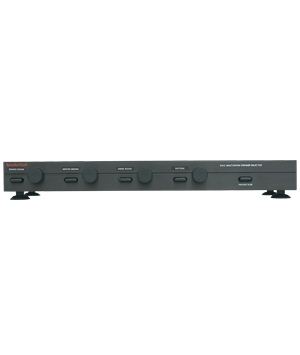

S4VC Four-Zone Speaker Selector with Volume Control

Order Stock # SWTS4130 *Retail Stock # SWTS4130R

• Supports up to 4 Pairs of Speakers
• Each Zone Has a 60 Watt, 12-Step, Transformer-Based, Stereo Volume Control
• Features Direct Connect Removable Screw Down Terminals
• Unique Suction Feet Assure the Selector Will Not Move When Room Selector Buttons Are Pushed
• When Engaged, Rear Protection Switch Assures Safe Operation, Even by Those Unfamiliar with the System
• Includes 100 Room Labels to Customize Any Application
• Power Handling: 125 Watts per Channel, Continuous
• Frequency Response: 20Hz - 20kHz
• Protection: Front Panel Button and Rear Override Switch
• Volume Control Power Handling: 60 Watts
• Volume Control Attenuation: 42dB Maximum
• Volume Control Switch: 12-Step “Make Before Break” Design
• Dimensions: (H x W x D) 1 3/4"* x 17" x 6 1/8"** (44 mm x 432 mm x 156 mm)
* Add ½" for feet (13 mm)
** Measurement does not include connectors. Please allow another 4" (102 mm) for rear wiring connections.
