280709
Vanco
280709
Vanco - 280709 HDMI Matrix 8X8 2 Cat5 U/M: EACH
Arizona: Special Order
Vegas: Special Order
Out of Stock

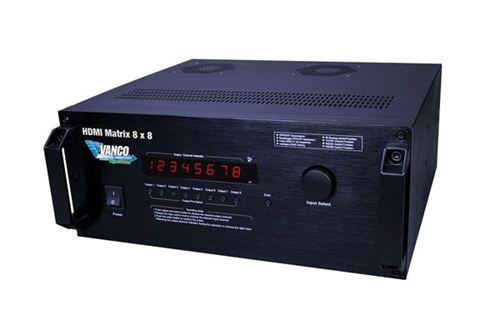

Vanco - 280709 HDMI Matrix 8X8 2 Cat5

Vanco Powered by WyreStorm HDMI® 8x8 Matrix Selector Switch over UTP with IR and RS232 Control

  • Offers Unprecedented Flexibility and Convenience by Extending High Definition Audio/Video Signals from any of 8 HDMI Sources to any of 8 Remote Displays over Single Cat5e/Cat6 Cables

  • Transmission Range: Extends 1080p resolutions up to 100 ft over Single or Cat5e Cables; Extends 1080p resolutions up to 110 ft over Single Cat6 Cables

  • Reading and saving EDID function from displays

  • Additional RJ45 Output allows for transmission of IR signals over Single Cat5e/Cat6 Cable

  • Includes Eight IR emitters to control the HDMI sources

  • Supports Dual Band IR in 38 and 56 KHz modes
  • Includes RS232 Exdender over Cat5e/Cat6

  • 19” Rack Mounting

  • 8x8 Matrix Dimensions: 17.25” W x 7” H x 15.25” D

  • Receiver Dimensions (Not Included): 2.625” W x .75” H x 4.5” D

  • Includes Remote Control

FEATURES:

  • High Speed Chip Set that Supports 3D and 4K x 2K
  • Six switching modes are available: panel buttons, local IR, IR call back from remote locations, RS-232, RS-485 and Ethernet
  • Each output includes one HDMI type A connecter and a set of dual RJ-45 connectors as the second mirrored HDMI output. The two outputs can work simultaneously. The UTP outputs support both dual and single Cat 5e/Cat 6 UTP/STP cables
  • Each port supports both HDMI and DVI inputs
  • Full HD1080P/60Hz
  • HDCP Compliant
  • Supports Digital Audio Format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
  • Tested for Compatibility with all leading HD Video brands
  • Tested with 7.1 Home Theater Systems
Part No Type Pkg. UPC
VPW-280709 8 x 8 Matrix Unit Pkgd 741835097437
VPW-280781 Receiver Unit Pkgd 741835097505
