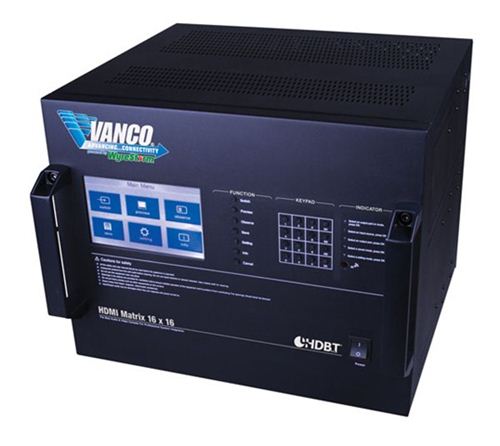

• Allows up to 16 HDMI audio/video devices to be independently switched to 16 HDMI monitors, HDTVs, or projectors
• Features HDBaseT Technology, optimized for whole-home or commercial distribution of uncompressed high-definition signals at three times the distance of HDMI cables without degradation
• Transmission Range:  Extends 1080p resolutions up 328 ft over a single Cat 5e or Cat 6 cable
• Includes Ethernet Extender Capability
• Reading and saving EDID function from displays
• 16 IR emitters are included to control the HDMI sources
• Supports Dual Band IR in 38 and 56 KHz modes
• Includes RS232 Extender over Cat5e/Cat6
• 19” Rack Mounting
• 16x16 Matrix Dimensions: 17.25” W x 13.75” H x 15.25” D
• Receiver Dimensions (Not Included): 6” W x 1” H x 4.25” D
• Includes Remote Control

FEATURES

• HDBaseT Technology that supports 3D and 4K x 2K
• Seven switching modes are available: panel buttons, touch panel, local IR, IR call back from remote locations, RS-232, RS-485 and Ethernet
• FullHD1080P/ 120Hz
• HDCP compliant
• Supports Digital Audio Format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
• RS-232 port can be configured with dip switches to be used for firmware updates or for RS-232 control
• Provides three records to save the current state of the matrix routing switch
• Touch screen allows for source signal preview and control of the Matrix Unit
• IR code edit
• Tested for Compatibility with all leading HD Video brands
• Tested with 7.1 Home Theater Systems
