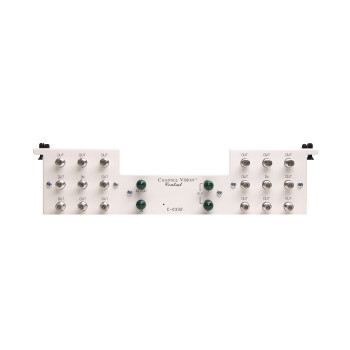

Channel Vision’s C-0032 houses an amplifier and two splitters all in one plate. It amplifies and splits cable TV signal to 16 locations with zero loss, making it ideal for small residential systems. It features a bi-directional return path for use with interactive set-top digital boxes. The C-0332 is not designed to be placed outdoors and should not be exposed to the water or moisture.

Key Features

• 1 in 16 out RF Amplifier
• 1dB signal gain per output
• DC and IR pass all ports
• Bi-Directional return path for use with cable modems

Technical Specifications

• Bandwidth: 5-1000Mhz
• Gain: Unity Gain
• Flatness: +/- 1dB
• Return loss (min): 14dB
• Return Path: 5-42Mhz
• Noise (max): 7dB
• IR Passing: Yes, all ports
• Power supply Included: 12VDC 200mA
• Power Requirements: 12VDC 55mA
