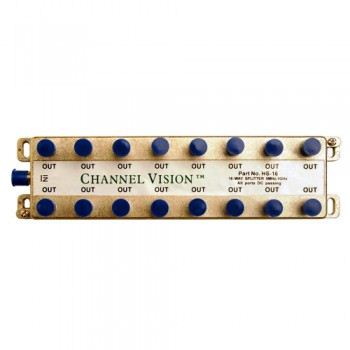

Channel Vision’s HS-16 splitter/combiner allows 16-way combining or splitting of TV antenna or cable signals. This splitter is DC passive allowing passage of low-voltage signals along the coax cable.

Key Features

• 16-way splitter/combiner, 1GHz, DC pass all port
• bulk pack-poly bag
• 15.0dB insertion loss
• Machine threads
• Grounding screw

Technical Specifications

• Bandwidth: 5-1000MHz
• Typical Insertion Loss: 15.5dB
• Max Insertion @ 1000MHz: 16.5dB
• RFI Isolation: -120dB
• Return Loss 50-1000MHz: >16dB
• Out to Out Isolation 50-1000MHz: >18dB
• DC Resistance Output to In: <.1ohms
• Input/Output Connectors: F Type Female
• Max DC Pass Through Current: 500mA
