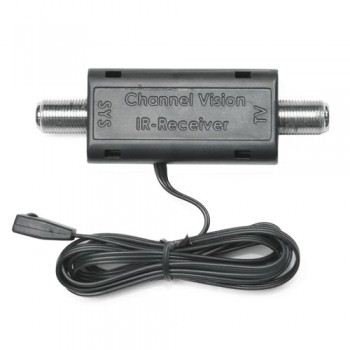

The IR-4101 is an IR coax adaptor that works with Channel Vision’s IR coax engine to enable the transmission of Infrared remote control signals onto the same coax cable that delivers your cable TV. Channel Vision’s IR coax engine can be found in the following products: IR-4000, E2200IR, E3200IR, E4200IR, and P-0321.

Key Features

• Plasma Proof IR receiver
• Compatible with: IR-4000, E2200IR, E3200IR, E4200IR, and P-0321.
• Versatile mounting accessories: install as very small receiver
• In-cabinet tube type receiver
• Unobstrusive desktop type receiver

Technical Specifications

• Voltage Requirements: 8 – 12 VDC
• IR Freq. range supported: 30 kHz – 60 kHz
• IR pickup range: 40 ft. @ 38kHz, 25 ft. @ 56kHz
• IR receiver head dimensions: 0.65” x 0.35” x 0.25”
• Max coax length: 200ft.*
• Color: Black
