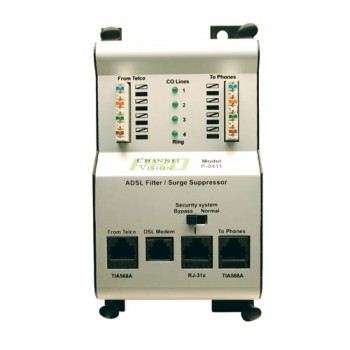

The P-0411 ADSL Filter and Surge Module serves three key purposes in one device and is ideal for customers who rely on telephone and data services through ADSL. Its all-in-one design helps to reduce cost, service complexity, installation time and mounts easily into a structured wire enclosure.

Key Features

• DSL Filter and Phone Surge Protection Module
• Active line and surge LED indicators
• 110 and RJ-45 inputs and outputs
• RJ-31x security systemconnection

Technical Specifications

• Telco Inputs: 2 (1-RJ-45 and 1-110)
• Outputs: 2 (1-RJ-45 and 1-110)
• RJ-45 Pinout: TIA568A
• Dimensions: 3.0” W x 6.5” H x 1.25” D
• Insertion Loss: <0.5dB @1020Hz
• Attenuation: 30KHz,200KHz,300KHz>65dB
• 500KHz,1104KHz>55dB
