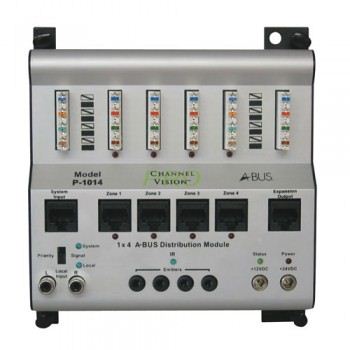

Channel Vision’s P-1014 functions as the heart of you’re A-BUS system. It is a 1×4 distribution module that delivers power and audio signals to 4 amplified keypads (model AB-114). Four emitter outputs on the P-1014 allow IR signals detected by the AB-114 to control source devices such as CD players and AM/FM tuners.

Key Features

• RJ-45 & 110 punch down connectors
• 24 VDC power supply
• Max audio input level: 5 Vp-p
• IR frequency range supported: 30kHz – 56 kHz
• Local and system audio inputs with selectable priority
• Expansion to addition units
• Dimensions: 6″W x 6.5″H x 1.25″D
