WA-360
Channel Vision
WA-360

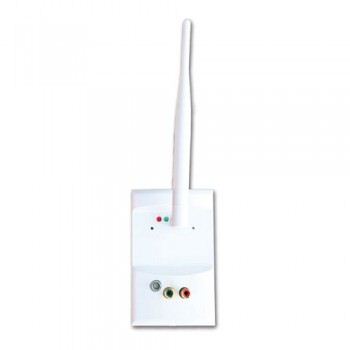

Channel Vision - WA-360. Wireless: 1 source to 1 destination Audio Receiver (use with WA-320). U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock


Channel Vision’s Wireless Audio Receiver 1 Source-1 Destination and WA-320 1-to-1 Wireless Audio Transmitter make it possible to create a distributed audio system without running wires from one room to another. The WA-360 can output either line level or speaker level audio, making it easy to distribute signals to the rear speakers of a surround sound system. The wireless receiver and wireless transmitter link together on a 1-to-1 basis and can operate over 8 different transmission channels. This allows up to 8 independent stereo audio streams to be distributed in one home. Perfect for multi-source and multi-room audio, subwoofers, rear home theater speakers, or an entire 5.1 home theater applications.

Key Features

  • Wirelessly transmits audio up to 300ft.
  • Standard Line-level audio outputs (WA-360)
  • Line-level and Speaker-level inputs (WA-320)
  • 8 transmission channels
  • Non volatile memory in case of power loss
  • Easy installation and linking

Technical Specifications

General

  • Storage Temperature: -40 to +85° C
  • Operating Temperature: 0 to +55° C
Transmit and Receive



  • Input Voltage: 5 VDC @ 250mA
  • THD+N: 0.7% Max
  • S/N Ratio: 80db
  • Audio Latency: 3.8 ms
  • Operating Frequency: 2400 MHz
  • Data Rate: 1.152 Mbps
  • Audio Sampling Rate: 48 kHz
  • Channels: 8 (user selectable)
Transmit
  • Transmission Power: 8.5 dB (9.5dB Max)
  • Modulation Type: GFSK
  • Channel Spacing: 9 MHz
  • Max. Audio Input: 2.6 Vpp
  • Input Impedance: 20 kOhm
  • Max. Speaker Level in: 100 watts RMS
Receive
  • RX Sensitivity: -85 dBm
  • Image Rejection: 47 dBc
  • Audio Output Level: 2.6 Vpp
  • Audio Output Impedance: 16 Ohms
  • Frequency Response: 20-20kHz +/- 3dB
  • Adjacent Channel Rejection: >45 dB
