WA-361
Channel Vision
WA-361

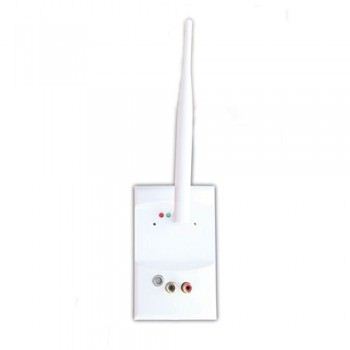

Channel Vision - WA-361. Wireless: 1 source to unlimited destinations, Audio Receiver (use with WA-321). U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock


 Channel Vision’s Wireless Audio Receiver 1 Source to Unlimited Destinations works with the WA-321 Wireless Audio Transmitter 1 Source – Unlimited Destinations to receive crystal-clear music up to 300 feet away, even through walls and floors. Enjoy the freedom associated with Wireless audio systems as they are ideal for retrofit and rental applications and are more flexible and affordable than traditional whole-house audio systems.Connect and wirelessly receive digital audio from virtually any source. Stream audio from a PC, listen to your tunes from an iPod or MP3 digital music player, or enhance listening experiences with gaming consoles and TVs. Music can be received by powered speakers, subwoofers, home theater surround sound speakers, a multi-room audio system, speaker bar, wireless headphones or other audio output device.



Key Features

  • Wirelessly receives audio up to 300’ ft.
  • Standard Line-level audio outputs (WA-361)
  • Line-level and speaker level audio inputs (WA-321)
  • 3.8 micro second latency (transmit and receive the music), undetectable to the human ear
  • 2.4GHz operating frequency offers clear, undistorted audio
  • Frequency hopping technology automatically links transmitter and receiver
  • 8 Digital Transmission channels
  • Simple installation and linking

Technical Specifications

General

  • Storage Temperature: -40 to +85° C
  • Operating Temperature: 0 to +55° C
Transmit and Receive
  • Input Voltage: 5 VDC @ 250mA
  • THD+N: 0.7% Max
  • S/N Ratio: 80db
  • Audio Latency: 3.8 ms
  • Operating Frequency: 2400 MHz
  • Data Rate: 1.152 Mbps
  • Audio Sampling Rate: 48 kHz
  • Channels: 8 (user selectable)
Transmit
  • Transmission Power: 8.5 dB (9.5dB Max)
  • Modulation Type: GFSK
  • Channel Spacing: 9 MHz
  • Max. Audio Input: 2.6 Vpp
  • Input Impedance: 20 kOhm
  • Max. Speaker Level in: 100 watts RMS
Receive
  • RX Sensitivity: -85 dBm
  • Image Rejection: 47 dBc
  • Audio Output Level: 2.6 Vpp
  • Audio Output Impedance: 16 Ohms
  • Frequency Response: 20-20kHz +/- 3dB
  • Adjacent Channel Rejection: >45 dB
