EL790 - Black case
EL790W - White case
EL790IR - IR with black case
EL790IRW - IR with white case

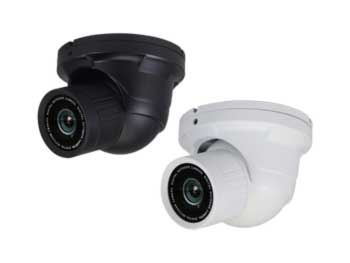

The EL-790 is an outdoor dome camera containing a lot of user friendly mechanisms and configurations. It incorporates a perfect and tool-free 3-Axis mount with which the camera can be installed on the wall, on the ceiling or on the slope with no limitation, wall mount bracket is available (optional). This unit realizes 600TVL (Day)/630TVL(Night) High Resolution with 1/3 Sony Super HAD CCD II and color signal removal technology at nighttime. Highly improved image process engine and Sens-up technology detect subject clear in B/W mode. 3D adaptive Noise Reduction Filter effectively removes the noises from the image signal under the low light and helps to reproduce a more vivid and clear image. With the built-in SSDR(Samsung Super Dynamic Range) technology, the unit can make the selected highlights masked and the dark brightened simultaneously to capture the numbers on the License Plate clearly at nighttime. OSD function. IP66 Weatherproof.



1/3" SONY Super HAD CCD

UP-Most High Resolution : Color - 600TV Lines / B/W - 630 TV Line

Built - In Next Generation 3D DNR with 3D Filter

Max. Sens-Up (x512), 0.00002 Lux of Min. lllumination

Convenient OSD Control Function

x16 Digital Zoom

Free Area Selectable Function of BLC and MD

Privacy Color Masking for 8 Area Selection

ICR-IR Cut Filter Removable(Option)

Max 70% of Disk Saving Effect with Super DNR
