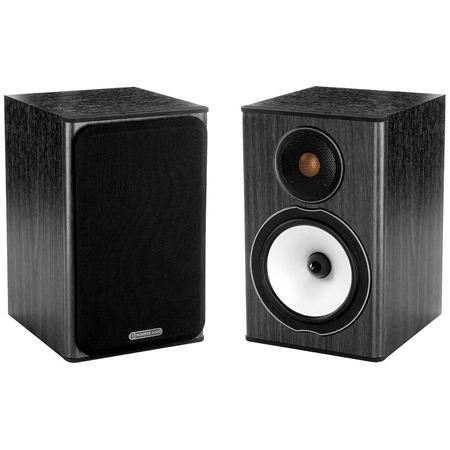

Monitor Audio Bronze BX1 Speaker (Black Oak)
One pair of BX1 speakers in black oak finish
The innovative BX1 squeezes the performance of a much larger speaker into a format that's easy to enjoy anywhere in the home. A wider more consistent frequency response from its C-CAM® drivers will give you the fidelity and bandwidth you'll need to liberate the essence of your music and film favourites, while leaving the choice of installation options wide open. The two-way BX1 utilises a single 140mm (5 1/2") C-CAM® bass-mid range driver and 25mm (1") C-CAM® tweeter in a system designed to defy the usual size/performance assumptions.
Features
- New C-CAM® tweeter has greater sensitivity and a wider bandwidth beyond 30kHz.
- New C-CAM® bass and mid-range drivers refined by FEA analysis.
- Single bolt-through drivers. A design feature which means the driver is not fixed to the front baffle and cannot transmit vibrations and therefore coloration to the cabinet.
- Improved cabinet rigidity and stability.
- HiVe®II port technology to speed the transit of air from the cabinet, resulting in more dynamic bass.
- High-quality terminal panels blend easy access with high-end functionality.
- Choice of two high quality vinyl wood finishes.
Click the left/right arrows for a 360° view of this fine speaker.
Specifications
- Frequency Response +/- 3dB: 55Hz - 30kHz
- Sensitivity (1W@1m): 88 dB
- Nominal Impedance: 8 ohms
- Power Handling (RMS): 70 W
- Recommended Amplifier Requirements (RMS): 15 - 70 W
- Cabinet Design: Rear ported bass reflex. HiVe®II port technology
- Crossover Frequency: 3.2 kHz
- Drive Unit Complement: 1 x 140mm (5 1/2") C-CAM® bass mid-range driver.
- 1 x 25mm (1") gold dome C-CAM® tweeter
- External Dimensions: (H x W x D) 260 x 165 x 180 mm (10 1/4 x 6 1/2 x 7 1/16 inches)
- Weight (Individual): 3.86 Kg (8.5 lb)
Technology
C-CAM® Drivers: Ceramic-Coated Aluminum/Magnesium is a material originally developed by the aerospace industry for jet engine components. Its properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. In manufacture, aluminum/magnesium alloy undergoes a three-stage stress-relieving process to remove surface deformation and molecular weakness. Once formed, the alloy cone is subjected to a high temperature anodic coating process in which a layer of pure ceramic alumina is depleted onto its surfaces to a depth of 50 microns, producing a completely rigid sandwich of alloy and heat-dissipating ceramic material.
Conventional cones are liable to flex or twist in operation, producing a significant level of audible distortion. C-CAM cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range. C-CAMtweeters and woofers share an audible consistency producing a smooth transition of frequencies and a sense of realism and cohesion in the soundstage.
HiVe®II Port Technology: A new type of port technology which uses a straight rifled design to accelerate air flow and reduce turbulence. HiVe II technology has the ability to move air in and out much quicker than a conventional port, the result is fast powerful bass coupled with superior transient response.
Gold Dome C-CAM®: The gold dome tweeter is formed from a ceramic-coated aluminum/magnesium alloy, gold anodized to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modeling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats.
The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
