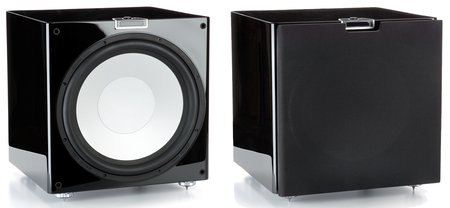

Monitor Audio Gold Series GXW15 Subwoofer

15 inch 650 Watt DSP Subwoofer in Gloss Black

The GXW-15 is a brilliant example of state-of-the-art subwoofer design. In a gloriously glossy, rigid compact enclosure, we’ve installed an ultra-long throw 15” C-CAM bass driver, triple suspended for a full 38mm (1.5”) of linear excursion. Featuring a massive magnet structure, and under the DSP control of a 650W D2Audio®* DSP controlled amplifier, this extraordinary deep bass generator brings a new dimension to bass, and reference results for SPL, dynamic control and headroom. It may deliver taut gut-churning bass all the way down to a seismic 18Hz, but the GXW-15 is also an intelligent design, featuring an advanced automatic room correction system called LEO™* (Listening Environment Optimizer). LEO simply and automatically eliminates the detrimental bass boost of boundaries and corners through the use of a microphone and test tones. The GXW-15’s sealed enclosure and front firing driver make it easy to install. Calibration from the front-mounted controls and dimmable LED display is simple, even from a distant position. It’s equipped with a 12V trigger and remote control with four user EQ pre-sets.

• Ultra long throw 15” C-CAM® driver featuring triple suspension
• Large black anodized 3” voice coil and double stack motor system provides high power handling and low distortion
• Carefully optimized motor system design to reduce heat and improve efficiency
• Powerful 650Watt DSP Controlled amplifier (D2 Audio™*)
• Advanced full bridge switch mode power supply (SMPSU) Capable of delivering over 1200 watt peak power
• 12V trigger - provides switching control from A.V amp or processor
• Rigid, 25mm (1”) thick M.D.F construct
• Heavy radial cabinet bracing with separate amplifier partition
• Front mounted control panel for easy access and viewing
• The LEO™*  system provides Automatic Room Mode Correction (ARMC) for easy set up and perfect sound quality
• Remote control with 4 user EQ settings
• Selected real wood veneer or high gloss piano finishes

*LEOTM and Listening Environment OptimizerTM are Trade Marks of D2Audio®.

LEOTM and D2Audio are Registered Trademarks of Intersil Corporation

Specifications

• System Format: Sealed Cabinet. 25mm M.D.F construction with internal bracing. Sealed amplifier compartment
• Low Frequency Limit: 18 Hz
• Upper Frequency Limit: 40 - 120 Hz Variable
• Low Pass Filter Alignment: Active 4th order 24dB/octave (6/12/18/24 dB user adjustable)
• Amplifier Power Output: 650 watts Continuous. 1200 watts (peak)
• Amplifier Classification: D2AudioTM* DSP controlled, Class-D amplifier system. High current switch mode power supply (smpsu)
• Equalisation: 4 Settings (Off/Music/Movie/Impact)
• Phase Control: 0-90-180-270 degrees
• Auto Sensing Input Level Requirements: Line Level > 2mV. Standby after 10 minutes if no signal sensed
• Digital Volume Level: -60 to +10dB in 1dB increments
• Drive Unit Complement: 1 x 15” C-CAM® sub-woofer driver featuring triple suspension, 3” long throw voice coil
• 12V Trigger Input: 3.5mm mono jack socket
• Connections: Stereo RCA in/out, LFE in/out, 12V Trigger in (3.5mm mono jack), LEO* - 3.5mm Microphone input jack (microphone supplied)
• Input Impedance: 20 kohms
• Dimensions (H x W x D): 430 x 400 x 400 mm (16 15/16 x 15 3/4 x 15 3/4 Inches)
• Grille Depth: 28 mm (1 1/8 Inches)
• Weight (unpacked): 35.3 kg (77.6 lbs)
• Mains Input Voltage: 100 - 120 Vac / 220 - 240 Vac 50/60 Hz (Factory preset)
• Electrical Certifications: CE/CB/ETL/Fcc/ErP (Energy saving compliant)
• Power Consumption: Maximum 1000W. Standby < 0.5W (ErP Compliance)
• Fuse Type: 20mm UL/VDE (Value is region specific)
• IR Remote Control Code: NEC SH6122

Technology

C-Cam Drivers: Ceramic-Coated Aluminium/Magnesium is a material originally developed by the aerospace industry for jet engine components. Its properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. In manufacture, aluminium/magnesium alloy undergoes a three-stage stress-relieving process to remove surface deformation and molecular weakness. Once formed, the alloy cone is subjected to a high temperature anodic coating process in which a layer of pure ceramic alumina is depleted onto its surfaces to a depth of 50 microns, producing a completely rigid sandwich of alloy and heat-dissipating ceramic material.

Conventional cones are liable to flex or twist in operation, producing a significant level of audible distortion. C-CAM cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range. C-CAM tweeters and woofers share an audible consistency producing a smooth transition of frequencies and a sense of realism and cohesion in the soundstage.
