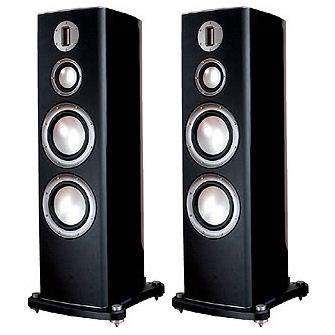

Monitor Audio Platinum PL300
Top of the line speakers in piano black gloss finish
Standing at nearly 1.2m tall, the PL300 is a majestic three-way floor-standing loudspeaker possessing the ability to generate the power and scale required to fill a larger room with awe-inspiring sound. Jaw-dropping dynamics, combined with supreme agility give the PL300 the power to paint the widest and most luminous of sonic pictures. It is a true wide-bandwidth speaker system, reproducing clean, natural frequencies ranging from 28Hz to 100kHz. Extremely accurate drivers, very low distortion networks and a sublimely inert cabinet structure combine to create a loudspeaker of immense sonic integrity: neutral, lifelike and totally refined.
Features
- Twin Ported HiVe® II technology
- Sealed Mid-range TLE®
- 2 x 8" long-throw RDT® bass drivers
- 1 x 4" RDT® mid-range driver
- 1 x C-CAM® high frequency ribbon transducer
- All cabinet finishes have hand-upholstered front baffles in Ingleston Black premium grade leather
- Finish options: Santos Rosewood veneer with clear gloss piano lacquer
- Ebony veneer with clear gloss piano lacquer
- Piano black gloss
Click left/right arrows for a 360° view of this fine speaker
Specifications
- Frequency Response: 28 Hz - 100 KHz
- Sensitivity (1W@1M): 90 dB
- Nominal Impedance: 4 Ohms
- Maximum S.P.L (Per pair in room): 118.6 dBA
- Power Handling (RMS): 300 W
- Recommended Amplifier Requirements (RMS): 100 - 300 W
- Bass Alignment: Twin Ported HiVe II Technology, Sealed Mid-range TLE
- Mid / H.F Crossover Frequency: 4000 Hz
- Bass Low Pass Crossover Frequency: 550 Hz
- Driver Unit Complement: 2 x 8" long throw RDT bass drivers, 1 x 4" RDT mid-range driver, 1 x C-CAM high frequency ribbon transducer
- External Dimensions -Including Fixed Plinth & Feet (H x W x D): 1113 x 410 x 470 mm (43 13/16 x 16 1/8 x 18 1/2)
- Weight (each) including Plinth: 43.8Kg (96.4lbs)
Technology
ARC Anti-Resonance Composite: Having various applications within a number of our speaker ranges, this high-tech Anti-Resonance Composite material is a thermo-set polymer loaded with minerals to provide very inert, optimally-damped components. Refined by Monitor Audio’s engineers initially for the Platinum series, ARC is ideal for acoustic design, where a high degree of structural rigidity and vibration damping is required in order to prevent the propagation of standing waves and modal resonances.
Ribbon Transducer: Monitor Audio's proprietary ribbon tweeter design uses an ultra-thin sandwich of C-CAM alloy suspended in a powerful transverse magnetic field of high energy NeFeB rare earth magnets. The ribbon serves as both voice coil and radiating diaphragm, with every part of the ribbon driven directly and simultaneously without energy storage. Having a mass of just 18mg, its diaphragm is able to start and stop in an instant, producing a transient response capable of defining the leading edge and natural harmonic resonance of complex musical sounds. Specified to reach ultra-high frequencies up to an elusive 100 kHz, Platinum’s magical ribbon tweeter will reproduce with ease every last nuance and detail from vinyl, CD, DVD-A and SACD, together with the wider bandwidth of Blu-ray.
RDT®: RDT is a unique technology developed specifically by Monitor Audio's engineers for the Platinum series of loudspeakers*. Designed to reduce mass and increase cone stiffness, RDT applies ultra-thin skins of C-CAM to a core of honeycomb Nomex®** material, creating a structure which is extremely light but incredibly rigid. At only 40 microns thick, the C-CAM skins are half the thickness of a human hair, yet when bonded to the Nomex core they form an RDT cone, which is 150 times more rigid than a single layer of 200 micron C-CAM alloy, but has a fraction of the overall mass. These properties allow the cone to operate as a lightning-fast piston for a clearer more natural sound. The RDT cone's concave geometry has been refined by FEA analysis to provide a smooth frequency response and to eradicate break-up.
** Nomex® is a registered trademark of E.I DuPont de Nemours and Company
