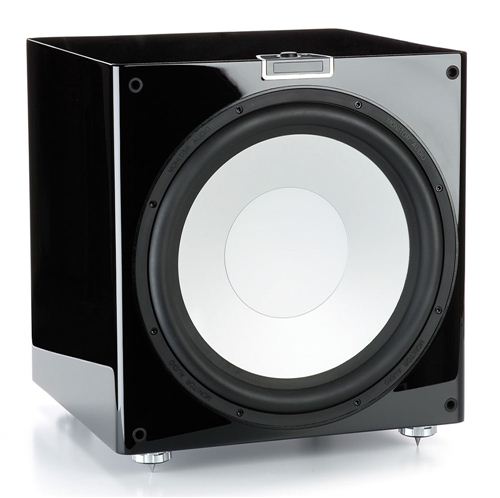

Monitor Audio Silver RXW12
500 watt Class D subwoofer in High Gloss Black Lacquer
For its success a multi-channel film sound mix relies on the profound structural underlay of a properly designed sub-bass engine. Not only can it dredge frighteningly deep and dramatic frequencies from the mix, especially from HD audio soundtracks, it also adds a holistic solidity to the sound, helping you to suspend your disbelief: a vital component in the enjoyment of surround sound A/V systems. The surprisingly compact RXW-12 active subwoofer is equipped by our engineers to turn your RX system (and others) truly seismic.
Using the latest switch mode power conversion techniques, the RXW-12’s new 500 watt Class D amplifier provides enough power to control with brutal efficiency a newly designed, 12” C-CAM driver, which is equipped with a double stack (two magnet) motor system and a massive 3” voice coil.
The RXW-12’s rigid, sealed 25mm (1”) MDF enclosure is front-loaded firstly because it promotes the fastest, deepest bass down to 20Hz and secondly for ease of installation. Wherever you place it, top mounted controls are provided for the fine adjustment of level, turnover and other parameters at the sub. For added convenience, a 12V trigger provides power syncing with your AV receiver.
Features
- Ultra long throw 12” C-CAM driver featuring triple suspension for ultimate linearity.
- Large 3” voice coil and double stack motor system provides high power handling and low distortion.
- Powerful 500W RMS Class-D amplifier with SMPSU able to deliver over 1000 watts peak.
- 12volt trigger - provides switching control from AV amp or processor.
- 25mm (1”) thick MDF construction
- Heavy radial cabinet bracing
- Top mounted control panel for easy access.
- Selected real wood veneer or high gloss piano finishes
Click left/right arrows for a 360° view of this fine speaker
Specifications
- Low Frequency Limit: 27Hz (EQ1) 21Hz (EQ2)
- Upper Frequency Limit: 40 - 120Hz Variable
- Power Output: 500W RMS (1000W Peak)
- Low Pass Filter Alignment: Active 4th order 24dB/Octave (2nd stage filter)
- Cabinet Specification: 25mm construction and internal bracing
- Cabinet Alignment: sealed cabinet
- Driver Complement: 1 x 12" C-CAM® sub woofer driver featured triple suspension and ling throw 3" voice coil
- External Dimensions: (H x W x D) inc. amp & driver 340 x 340 x 410 mm (13 3/8 x 13 3/8 x 16 1/8 inch)
- External Dimensions: (H x W x D) inc. feet & grille 375mm (15") high with feet
- 430mm (16 15/16") deep inc amp & grille
- Mains Input Voltage Specification: 110 - 120 Vac / 220 - 240 Vac 50/60Hz
- Individual Weight: 22.56 Kg (49.63 lb)
Technology
C-CAM® Bass Drivers: Refined over many years by Monitor Audio, Ceramic-Coated Aluminium/Magnesium is used as a driver cone material for all our speaker designs from the mid-market models up. Originally developed by the aerospace industry for jet engine components, C-CAM's properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. C-CAM bass drivers are able to resist the bending distortion imposed by sudden and extreme bass excursions to reproduce very clean, deep and dynamic bass frequencies. Conventional cone materials are more likely to flex in operation, producing a significant level of audible distortion.
