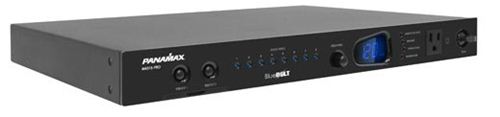

Panamax M4315-PRO

Dedicated 15 Amp Power Management Component

Interactive control and real time monitoring

Features

• Eight fully controllable/programmable outlets via RS-232C or BlueBOLT™
• Linear Filtration with four isolated outlet banks
• Two front-panel programmable reboot buttons
• Removable rack ears (included) with a full depth metal chassis
• BlueBOLT™ IP system control and monitoring, comes installed (RS232 communication card included, not installed)
• Sleek new design including volt/amp meter, outlet status and warning LEDs
• Dedicated 15 AMP
• Circuit breaker/power switch

Specifications

• General
  • Weight 12 lbs.
  • Rack Ears Removable
  • Dimensions 19 in. W (17 in. without rack ears) x 12.25 in. D x 1.75 in H
• AC Specifications
  • Voltage Regulation No
  • Total Outlets 9 outlets
  • Total Current Capacity 15 A (1800W)
  • Thermal Fusing Yes
  • Protection Modes L-N, L-G, N-G
  • Peak Impulse Current 135,000
  • Line Voltage 120VAC, 60 Hz
  • Isolated Banks 4
  • Initial Clamping Level 200V Peak, 141V RMS
  • High Current Outlets 2 outlets
  • Energy Dissipation 2700 Joules
  • Catastrophic Srge Circuit Yes
  • Auto-resetting Under-voltage shutoff 100 VAC ± 2 VAC
  • Auto-resetting Over-voltage shutoff 134 VAC ± 2 VAC
• LAN Protection
  • Wires Protected 8-wires
  • Jacks RJ-45
  • Compatibility 10/100/1000 BASE-T
  • Clamping Level 60V ± 5V
• Telco Protection
  • Suppression Modes Metallic & Longitudinal
  • Lines Protected 2-Wire, Pins 4 & 5
  • Fuseless/Auto-resetting Yes
  • Connectors RJ-11
  • Clamping Level 260V
  • Capacitance 30pf (approx.)
• Universal Coax Protection
  • Shielded Yes
  • Insertion Loss < 0.5 dB
  • HD 1080 i/p Ready Yes
  • Frequency Range oMHz - 2.2 GHz
  • Connectors Female "F", Gold Plated
  • Clamping Level 75V
  • Bidirectional Yes
• EMI/RFI Noise Filtration
  • Banks 1,2,3 76db, 5KHz — 250 kHz
  • Bank 4,
  • High Current Outlets 46 db, 250 KHz — 1 Mhz

Note: Specifications are subject to change due to product upgrades and improvements.

Warranties

3 YEAR PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

PF Power products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
