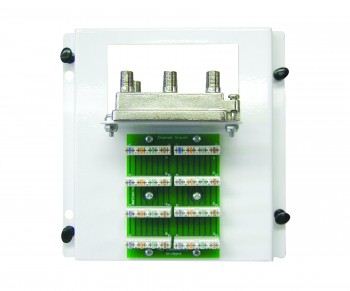

Channel Vision’s C-0227 is a compact distribution module that distributes 4 Central Office phone lines to 7 locations and a CATV or antenna signal to 8 locations. The standard 110 punch down connectors allow for an easy and quick installation telephone service. The vertical orientation of the 8-way RF splitter allows easy connection of coax cables without exceeding maximum bend specifications. The C-0227 is ideal for installations which require telephone and TV service at several locations, but have very little space inside the structured wiring enclosure.

Key Features

• Compact Design
• Simple connections
• DC power passing 8-way RF splitter
• Telephone distribution to 7 locations

Technical Specifications

• RF Insertion loss: 11.5 dB (typical)
• RF Bandwidth: 5-1000MHz
• RF inputs: 1 (DC passing)
• RF outputs: 8 (DC passing)
• 110 connectors: 8 (all bridged)
• Dimensions: 6.50” L x 6.38” W x 2.83” D
