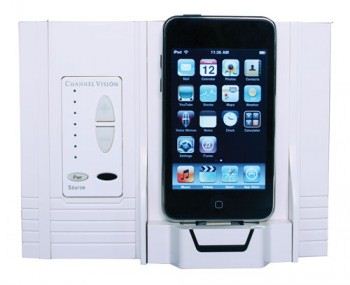

Channel Vision’s AB-315 is an on-wall iPod docking station for A-BUS audio systems. This on-wall dock allows you to listen, charge, and control your iPod music and video from any room in your home or business. With its elegant design and functionality, it enhances your iPod entertainment experience.

Technical Specifications

• Operating Voltage: 24VDC
• Cable Requirements: CAT5 or better
• Recommended Max. Cable Length: 250ft.
• Wire Type: 4-pair, UTP Category 5, 5e or 6
• Wall Dock (2-gang): 4.88”W x 5.14”H x1.24”D  (front)
• Rear Depth: 1.56”
• Wall Dock and Keypad(3-gang): 6.73”W x 5.14”H x 1.24”D (front)
• Rear Depth: 1.56”
• Color: White
• iPod nano (1st, 2nd, 3rd, 4th and 5th generation)
• iPod touch (1st and 2nd generation)
• iPod classic
• iPod with video
• iPod with Click Wheel
• iPod mini

Key Features

• Compatible with all A-BUS Audio Systems
• Charges the iPod while it is docked
• Senses audio to automatically override the main audio source
• Supports IR control: compatible with A0505 or Apple Remote
• Uses CAT5 Cabling
• Mounts in a standard 2-gang box
