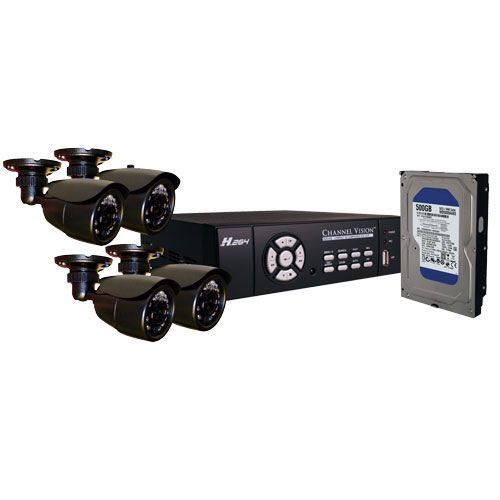

Channel Vision’s DVR Kit with Outdoor Cameras is a full surveillance DVR kit complete with four outdoor IR bullet cameras (6026) and a 500GB drive for video recording.

Key Features

• Windows and Mac Compatible
• H.264 for DVR recording and web compression
• 3G mobile phone monitoring supports iPhone^®, Blackberry^®, and Windows^®
• 540 TV lines of resolution

DVR  Technical Specifications

• Video System: NTSC/ PAL switch
• Video Input: 4CH BNC
• Video Output: 1CH BNC
• SPOT Output: 1CH BNC
• Audio Input: 1CH RCA
• Audio Output: 1CH RCA
• Audio Backup: Yes
• Sensor: 4 input/1 output
• RS-485: Pan/ Tilt/ Zoom camera
• USB Port: 2 ports
• Mouse: USB Mouse
• IR Remote Controller: Yes
• HDD Support:  SAT HDD x1 (Max. 2TB)
• Display Division: 1,4
• Title: 14 Characters
• Video Compression: H.264
• Audio Compression: ADPCM
• Resolution: 720×480, 720×240, 360×240 (NTSC) 720×576, 720×288, 360×288 (PAL)
• Frame Rate: 60, 120, 120 (NTSC) 50, 100, 100 (PAL)
• Quality: Highest, High, Normal, Basic, Below Basic
• Record Mode: Manual, Schedule, Event (motion detection/sensor)
• Pre-Alarm Recording: 16MB (approximately 10 sec)
• Post-Alarm Recording: 1-999 sec
• Motion Detection: sensitivity 0~10
• Search Mode: Time, Event
• Playback Speed:  fast forward/backward 2x/4x/8x/16x/32x/64x slow forward/backward 1/2x, 1/4x, 1/8x, 1/16x play/pause
• Backup Mode: USB flash driver/network
• Network Compression: H.264E
• Network Software: Internet Explorer/ CMS/ 3G Mobile Phone
• Network Users: 5
• Remote Notification: Email message
• Service: TCP/IP, SMTP, DHCP, DDNS, PPPoE
• Daylight Savings: Yes
• Password: 5 Users including 1 administrator user authority selectable
• Event List: 10000
• Key Lock: Yes
• Firmware Update: USB Device
• Dimension: 430mm(W) x 70mm(H) x 360mm(D)
• Power Source: DC12V
• Operating Environment: 30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)

Camera Technical Specifications

• Image Sensor: 1/3” Hi-Res CCD
• Camera Lens: 3.6mm
• Resolution: 540 lines
• Eff ective Pixels: 768 x 494
• S/N Ratio: More than 48 dB
• Min Illumination: 0.02 LUX @ F1.2
• (Before IR is activated)
• Power Supply: 12VDC regulated
• Power Consumption: 315mA (total)
• Camera: 95mA, LEDs: 220mA
• Video Output: 1 Vp-p @ 75 ohms
• White Balance: Automatic
• Auto Electronic Shutter: 1/60s ~ 1/100,000s
• Scanning System: Interlaced 2:1
• Synchronous System: Internal, Negative Sync.
• Gamma Characteristic: 0.45
• Waterproof Criterion: IP68
• Dimensions: 2.44” Dia. x 5.16”L (without sunshield)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
