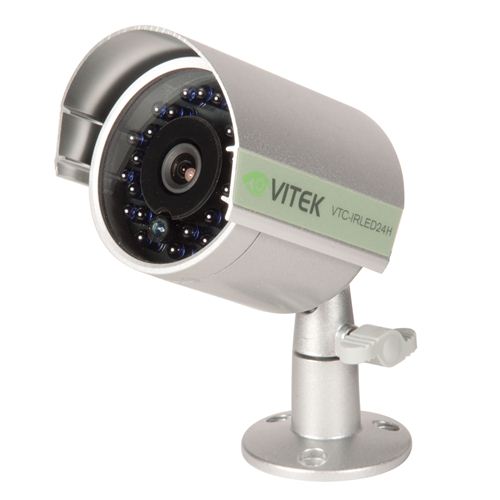

VTC-IRLED24H
Vitek
VTC-IRLED24H
Vitek VTC-IRLED24H - 480TVL CLR IR Bullet w/24 LEDS. U/M: each
Arizona: Out of Stock
Vegas: Out of Stock
Out of Stock
Retail: $140.00 Each




VTC-IRLED24H
VTC-IRLED24H
Day/Night Infrared 520 TV Line Bullet Camera w/50' Range

  • 1/3" High Resolution Color CCD image sensor
  • 520 TV Lines of Resolution
  • Minimun Illumination of 0.6 Lux (0 Lux / F2.0 with IR LEDs On)
  • 3.6mm / f2.0 Standard Lens
  • Water Resistance: IP 67
  • 24 IR LEDs with 50’ Range
  • Effective IR Range: Over 50 Feet
  • Automatic IR triggers On under low illumination / Off under Normal Illumination
  • Sun Shroud to reduce glare and dissipate heat
The VTC-IRLED24H employs a 1/3" High Resolution Color CCD image device that provides extremely long life and high reliability. 24 Infrared LED’s allow for clear images even in total darkness. It comes complete with lens and mounting hardware ready to install in almost any environment. 12VDC Power and compact size make the VTC-IRLED24H an excellent choice for covert applications.
VTC-IRLED24H Specifications:
Image Device 1/3" Color CCD image sensor
Effective Pixels 771(H) x 492(V)
Resolution 520 TV lines
Min. Illumination 0.6 Lux / F2.0 (0 Lux with IR LEDs ON)
Infrared LEDs 24 840nm IR LEDs
IR Distance Over 50 Feet
Day/Night Auto
S/N Ratio More than 48dB (AGC off)
Electronic Iris 1/60 to 1/100,000 sec.
Built-In Lens f3.6mm / F2.0
Light Compensation Built-in BLC
Iris Mode AES (Auto Electronic Shutter)
Gain Control Auto
White Balance ATW
Video Output 1.0Vp-p composite, 75 Ohms
TV System 2:1 Interlace
Scan Frequency 59.94Hz(V), 15.734Khz(V)
Synchronization Internal/Line Lock (Default: Internal)
Water Resistance IP67
Construction Aluminum Housing
Power Source 12VDC
Power Consumption IR ON: 455mA (12VDC) / 400mA (24VAC) / IR OFF: 110mA (12VDC) / 120mA (24VAC)
Operating Conditions 0~104°F (0~40°C) / 85% RH Max
Length 2.48" x 2.28" x 4.06" (63 x 58 x 103.2mm)
