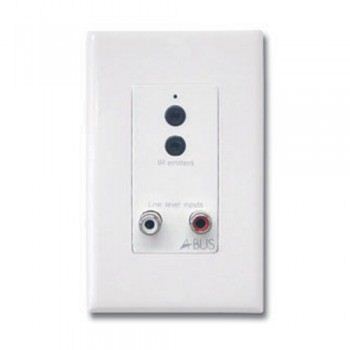

Universal input module. Can be used to provide local source input in any room and/or to replace the AB-202. The AB-301 is a great way to enable simple connection of local sources into the zone.

Key Features

• Universal Input Module
• Allows for local zone or main source input
• RJ-45 & 110 Connectors
• Single-gang with decorator faceplate (trim plate not included)
• (2) IR emitter outputs
• Available in White (AB-301W) or Ivory/Almond (AB-301IA)

Technical Specifications

• Operating Voltage : 24±.5VDC
• Status input: 9-20VDC <20mA
• Cable requirements: CAT-5 or better
• Speaker impedance: 6-8 ohm
• IR repeating: 38-56kHz
• IR sensor range (AB-114): 40’@40kHz 25’@56kHz
• Operating Temperature: -10ºC to +50ºC
