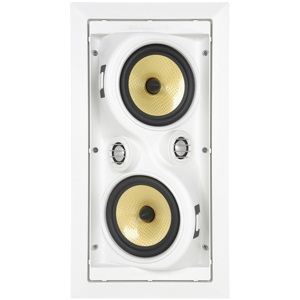

AIM Cinema Dipole Five

Order Stock # ASM73551

• Two 5 1/4" Kevlar® Cone Woofers with Phase Plugs
• Two Pivoting 1" Aluminum/Magnesium Dome Tweeters
• Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
• Front-Mounted Switches for Bipole or Dipole, QFX & Beam Steering Configuration
• Timbre-Matched to All Five Series Speakers
• Bipole Sensitivity: 89dB 1W/1m
• Dipole Sensitivity: 82dB 1W/1m
• Power Handling: 100 Watts
• Impedance: 8 Ohms Compatible
• Frequency Response: 48Hz - 20kHz
• Dimensions: (H x W x D) 17 7/16" x 9 1/4" x 3 3/8" (443 mm x 235 mm x 86 mm)
• Wall Cut-Out: (H x W) 15 5/8" x 7 1/2" (397 mm x 190 mm)
