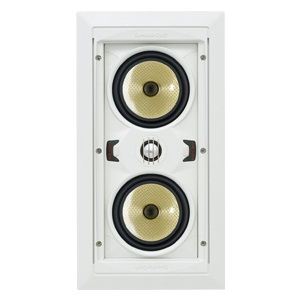

AIM LCR 5

Order Stock # ASM84651

• Pivoting Woofer Baffle
• Two 5 1/4" Kevlar Cone Woofers with Phase Plugs
• Pivoting 1" Aluminum/Magnesium Dome Tweeter
• Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
• Timbre-Matched to All Five Series Speakers
• U.S. Patent No. 7,522,742 B2
• Sensitivity: 91dB 1W/1m
• Power Handling: 100 Watts
• Impedance: 8/6 Ohms, Depending on Switch Settings
• Frequency Response: 48Hz - 20kHz
• Dimensions: (H x W x D) 9 1/4" x 17 7/16" x 4" (235 mm x 443 mm x 102 mm)
• Wall Cut-Out: (H x W) 7 1/2" x 14 1/4" (190 mm x 362 mm)
