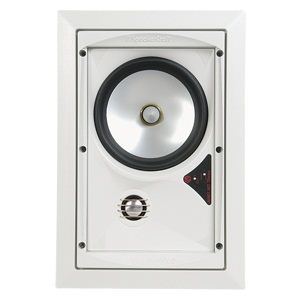

AIM7 MT Three
Pair of in-wall speakers
Building on the success of the AIM LCR, the AIM7 MT series is also an in-wall speaker with a fully pivoting baffle, allowing the installer to toe-in the left and right speaker for better stereo imaging. They feature 7-inch woofers, a substantial improvement over the 6-inch driver in the original MT6, as well as an offset, independently pivoting tweeter. They play louder, deeper, and with more authority than the MT6 and at the exact same price. Step up to the AIM7 MT and give your customer a better sonic experience at no additional cost.
Available With Acoustacell™
SpeakerCraft’s AcoustaCell™ System is an exclusive innovation that solves the biggest problem with in-wall speakers — the wall! When using AcoustaCell, the AIM7 Mirror Image Technology speakers become the most advanced and accurate medium sized in-wall speakers in the world. Dramatically deeper bass, elimination of phase cancellation, and lowered sound transmission into adjacent rooms can all be assured when using AcoustaCell.
Specifications
- 7" Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround w/ Phase Plug
- Pivoting 1" Aluminum Dome Tweeter
- Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
- Timbre-Matched to All Three Series Speakers
- Sensitivity: 91dB 1W/1m
- Power Handling: 125 Watts
- Impedance: 8/6 Ohms
- Frequency Response: 40Hz - 20kHz
- Dimensions: (H x W x D) 14 ½" x 9 7/8" x 4” (at Full Pivot) (368 mm x 251 mm x 102 mm)
- Wall Cut-Out Dimensions: (H x W) 12 ¾" x 8 1/16" (324 mm x 206 mm)
- U.S. Patent No. 7,522,742 B2
