AT-HD-V12

Atlona 1x2 HDMI Distribution Amplifier with 3D Support

The Atlona 1x2 HDMI distribution amplifier is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays.

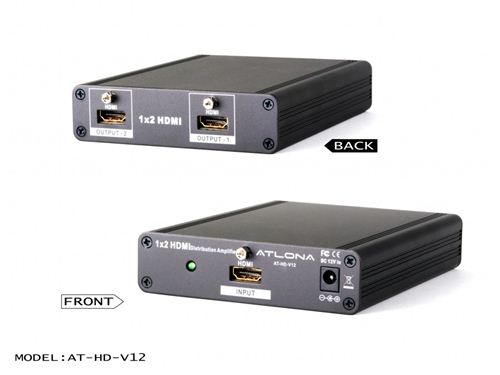

Atlona 1x2 HDMI Distribution Amplifier with 3D Support. Model: AT-HD-V12

The Atlona 1x2 HDMI distribution amplifier is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays. AT-HD-V12 splits HDMI signal between up to 2 outputs without signal loss maintaining high resolutions up to 1080p or 1920x1200.

Features:

• 3D Capable
• HDCP compliant.
• Deep color video up to 12bit, 1080p@(24/50/60)Hz 1920x1200.
• HDCP keyset allows each output to work independently when connecting to a HDMI display.
• Splits a HDMI source up to two outputs simultaneously, without signal loss.
• Supports DVI source and DVI display by using HDMI to/from DVI adapter cable.
• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
• Supports High Definition audio-Dolby Digital TrueHD and DTS-HD
• Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p.
• HDMI cable distance test with 1080p resolution, the Input/Output source can run up to 15m (50ft) without degradation
• Supports EDID functionality. The unit will detect the first HDMI/DVI output source's EDID and record it in the unit.

Specifications:

• Frequency bandwidth: 6.75 GHz
• Max. Resolution HDTV: 1080p
• Max. Resolution PC: 1920x1200
• Input port: 1x HDMI female port (Type A connector)
• Output ports: 2 x HDMI female ports
• Power Supply: 12V (US/EU standards, CE/FCC/UL certified)
• Dimensions: (inch) 5.4(W) x 3.5(D) x 0.75(H)
• Weight(g) 2 LB
• Chassis Material Metal
• Silk Skin Color Black
• Operating Temperature Operating from 0°C ~ 48°C

Package Includes:

• 1x2 HDMI Distribution Amplifier (AT-HD-V12)
• 12V Universal Power Supply
• User Manual
