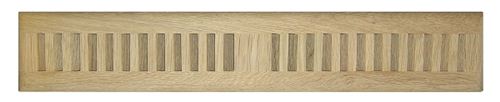

This is a wood grill matches the Cabinet Toe Grill and is mounted into a rectangular opening.

• Easily and Attractively Adds Passive Cooling
• For Use in Toe Kicks or Anywhere where a Narrow Grill is Needed in a Cabinet, Door, and Most Any Area
• Includes Mounting Hardware

General Specifications



Dimensions - Grill Face:   3" x 17" (7.6cm x 43.2cm)

Dimensions - Depth:        ~5/8" (15mm)

Mounting Hole:                2" x 15 3/8" (5cm x 39cm)

Mounting Type:               Insert Mount (Grill body extends into the cabinet)

Wood Type:                    Maple, White Oak, & Teak

Finish:                            Unfinished (Stain to match cabinetry)

Installation

1. Determine the location for the grill ensuring that there will not be any obstructions inside the cabinet.
2. Cut a 2" x 15 3/8" (5cm x 39cm) opening in the cabinet - using a jig saw for 'accessible' cuts or saws-all may work best for tight working conditions.
3. It may be easiest to mount using double stick tape or velcro or you can follow directions that are included with the unit to use the enclosed mounting hardware.
