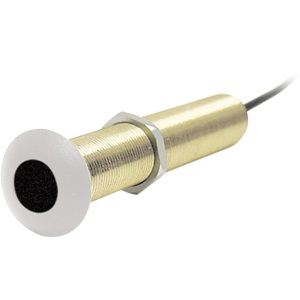

IRC-1.0

Flush-Mount Mini IR Receiver

Order Stock # ELT01100 *Retail Stock # ELTR01100

• Unique Quad 3.5mm Mini-Phone Type Connector
• Exclusive Ambient Noise Suppressor
• Includes Four Snap-On Color Cap Bezels (Almond, Black, Bone and White)
• Small Unit Designed To Mount Flush with a Cabinet or Wall, Leaving Only a Circular Bezel Exposed to the Room
• May Be Mounted Behind Grilles of In-Wall Speakers
• IR Activity and System Status LEDs
• Frequency Range: 28 - 90 kHz
• Requires Regulated Power Supply, Terminator Block, and Emitters
• Includes ALR Bezels for Use in Situations with Interference from Plasma Displays or CFL Units
• The Two Sizes of Ambient Light Restrictor Bezels Reduce the IR Reception Angle from 100° to 60° or 70°
• Dimensions: (Shaft Dia x L) 15/32" x 25/8" (12 mm x 67 mm) Color Cap Bezel: (Dia x L) 47/64" x 1/8"
• (19 mm x 3 mm) ALR Bezel: (Dia x L) 47/64" x 23/64" (19 mm x 9 mm)
