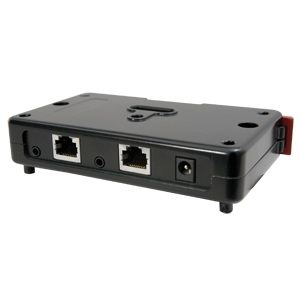

MODE Base Adapter

Provides an interface between the MODE Base and any MZC.

Order Stock # CTL14335

• RJ45 jack for Cat 5 Connection to MODE Base
• RJ45 jack for Cat 5 Connection to the MZC System Controllers
• Auxiliary Stereo Audio Input
• Quick-Lock System Designed for Stacking Multiple MODE Base Adapters.
• One PS-3 Power Supply Supports up to 6 MODE Base Adapters and 6 MODE Bases
• (Please See MODE Manual for Details)
• PS-3 Power Supply Required (Not Included)
• 35mm DIN Rail Mountable
• Dimensions: (L x W x D) 5" x 3" x 1 5/16" (Including Feet & Connector)(127 mm x 76 mm x 33 mm)
• Each Stacked Unit Adds 1" Depth (25 mm) The DIN Rail Clips Add 3/8" (10 mm) Total to the Length
