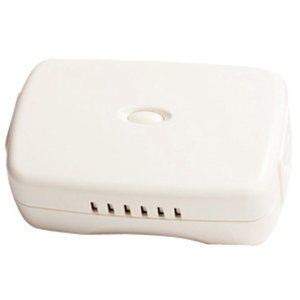

LDM-15 Plug-in Lamp Module

The LDM-15 plug-in Lamp Module is a component of the Evolve lighting control system. Plug the Lamp Module into a wall outlet
and plug a lamp into the controlled outlet of the Lamp Module. Inclusion of the LDM-15 Lamp Module allows remote ON/OF
control and dimming of lamps connected.

This plug-in Lamp Module is designed to work with other Evolve enabled devices. Evolve nodes of other types can be included in
the system and will also act as repeaters.

As part of a Evolve network, the LDM-15 will act as a wireless repeater to insure that commands intended for another device in
the network are received. This is useful when the device would otherwise be out of the radio range.

Power Requirements

• 120 VAC, 60 Hz

Specifications

• Signal (Frequency): – 908.42 MHz
• Load: – Incandescent: 300W maximum, 120 VAC.
• Range: – Up to 100 feet line of sight between the Wireless Controller and /or the closest Z-Wave device.
• Z-Wave Version 4.52
• Network Inclusion
• Scene – Command Class
• Security Compatible
