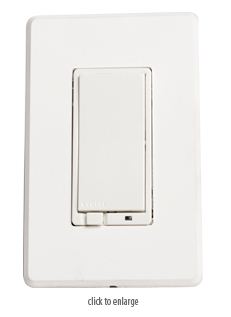

LRM-AS Wall Mounted Dimmer

The LRM-AS Wall Mounted Dimmer is a component of the Evolve lighting control system. Wire the Wall Mounted Dimmer in place
of the standard wall dimmer according to the diagram above. Inclusion of the LRM-AS Wall Mounted Dimmer allows remote ON/
OFF control and dimming of lights connected.

This Wall Mounted Dimmer is designed to work with other Evolve enabled devices. Evolve nodes of other types can be Included in
the network and will also act as repeaters to increase the range of the network.

Power Requirements

• 120 VAC, 60 Hz

Specifications

• Maximum Load – 500 Watts for control of permanently installed incandescent lamp fixtures only.
  (not for control of receptacles)
• Signal (Frequency) – 908.42 MHz
• Range – Up to 100 feet line of sight between the Controller and /or the closest EZ-Wave Device.
• Z-Wave Version 4.52
• Network Inclusion
• Scene – Command Class
• Security Compatible
