VS-RSC-H
Cool Components
VS-RSC-H

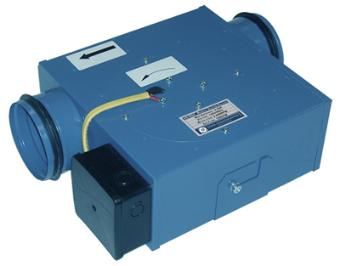

Cool Components VS-RSC-H - Remote Inline System Cooler - 160 CFM. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $459.00 Each


 Minimum Size With Maximum Capacity!


Cool Components is proud to introduce the newly re-designed Remote System Cooler. Now even more compact with less height and width, the appropriately named Remote System Cooler is the most versatile system for remotely venting heat generated by heat producing equipment and systems.  The re-designed fan unit now also includes a low profile mounting bracket for easy mounting in any location. This unit will ideally vent and cool projector enclosures, built-in cabinetry and equipment closets.  While other products on the market can only be installed in attics, the remote fan unit is compact and quiet enough to be installed in a ceiling or room soffit to reduce unnecessary tubing.  It is also attractive enough to be retrofitted in a closet by mounting it on the wall and powerful enough to properly ventilate even the most demanding applications.


The system provides up to 130 cubic feet of air per minute and utilizes 4" flexible duct.  It can also be used in conjunction with our rough-in boxes and passive grills for intake or exhaust ports.  This means you have the option of plastic and wood grills in a variety of finishes. The fan unit is top quality and features a unique design with removable cover for easily cleaning and servicing the fan. The external rotor motor utilizes precision ball bearings and the backward curved, balanced impeller ensure high pressure in ventilation ducts, prevents vibration, and assures quiet operation. Speed can be regulated with a variable speed control. The housing is made of steel with zinc phosphate treatment and polymeric coating.

The Cool Components Remote Ventilation System offers extreme versatility and great value for the custom installer.  The quality construction and innovative features will make this product the obvious choice for the custom installer for aggressive cooling applications.

CEPro BEST Finalist
For a completely automated solution, use in conjunction
with the Advanced Ventilation Controller (TC-AVC).

Coming Soon - 240 Volt System and Complete Package Options

      Features



  • Engineered To Efficiently Recirculate Hot Air from Rooms, Closets & Cabinetry.
  • Very Low Noise with Maximum Effectiveness & Efficiency
  • ANSI/UL 705, ETL, CE and AMCA Certified
  • Rectangular Duct Fan with a Very Low Profile for Circular Ducts - Total Height is Only 1/2" More than the Duct Dimension
  • Unique Design with Removable Cover Facilitates Easy Cleaning and Servicing
  • Utilizes 4" Flexible Duct for Intake and Exhaust
  • Includes Low Profile Mounting Bracket
  • Soon to be available in Packages for Projector, Cabinet and Closet Venting
  • Optional Accessories: Rough-in Boxes, Collector Adapter, TC-AVC Temperature Controller



         General Specifications

         Dimension:               L - 14.25 x W - 9.4 x H 4.3 (36cm x 24 x 12)
         Construction:            Steel with Zinc Phosphate Treatment and Polymeric Coating
         Cooling System:       Backward Curved Impeller with Straight-Through Air Flow
         Air Flow:                  130 CFM
         Noise:                      20-48 dBA Dependent on Pressure and Flow

         Power Specifications

         Power Connection:    14/2 Electrical Wire or as per Local Electrical Code
         Voltage:                   120V 60Hz
         Current - Amp::         0.53A
