VTC-IRLED24A
Vitek
VTC-IRLED24A
Vitek VTC-IRLED24A - Alpha Series Bullet Camera w/24 IR LEDs- 420 TVL & 12VDC operation. U/M: each
Arizona: In Stock
Vegas: Special Order
Out of Stock
Retail: $105.00 Each
MAP: $105.00 Each




VTC-IRLED24A
VTC-IRLED24A

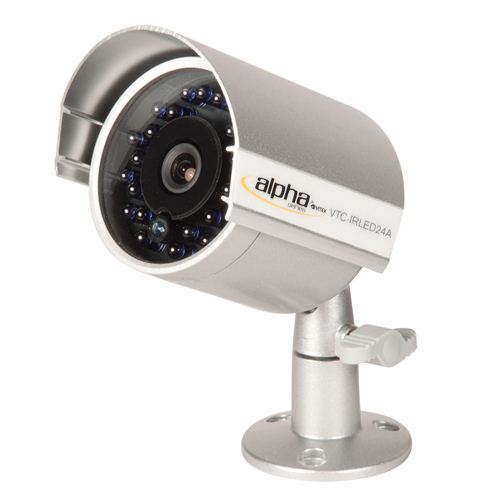

Alpha Series Day/Night Infrared Bullet Camera w/50' Range

  • 1/3” Color CCD image sensor
  • Minimun Illumination of 0.6 Lux (0 Lux / F2.0 with IR LEDs On)
  • 24 IR LEDs with 50' Range
  • 3.6mm / f2.0 Standard Lens
  • Automatic IR triggers On under low illumination / Off under Normal Illumination
  • Sun Shroud to reduce glare and dissipate heat
  • 12VDC Operation

VTC-IRLED24A Specifications:
Image Sensor 1/3" Color CCD image sensor
Effective Pixels 512(H) x 492(V)
Resolution 420 TVL
Minimum illumination 0.6Lux / F2.0 (0 Lux with IR LEDs ON)
Infrared LEDs 24 840nm IR LEDs
IR Distance Over 50 Feet
Day/Night Auto
S/N Ratio More than 48dB (AGC off)
Electronic Iris 1/60 to 1/100,000 sec.
Built-In Lens f3.6mm / F2.0
Light Compensation Built-in BLC
Iris Mode AES (Auto Electronic Shutter)
Gain Control Auto
White Balance ATW
Video Output 1.0Vp-p composite, 75 Ohms
TV System 2:1 Interlace
Scan Frequency 59.94Hz(V), 15.734Khz(V)
Synchronization Internal/Line Lock (Default: Internal)
Water Resistance IP 67
Construction Aluminum Housing
Power Source 12VDC
Power Consumption 100mA (IR OFF), 350mA (IR ON)
Operating Conditions 0~104°F (0~40°C) / 85% RH Max
Length 2.48" x 2.28" x 4.06" (63 x 58 x 103.2mm)
