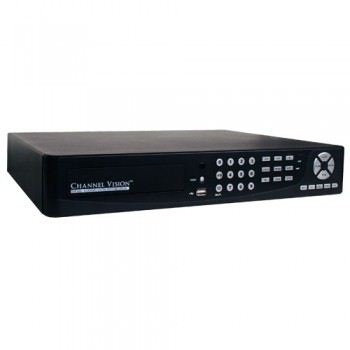

Channel Vision’s 3G compatible 4, 8 and 16-Channel DVRs utilizes the latest H.264E digital compression technology to improve video streaming capabilities and reduce the storage space needed to archive extended days of recorded video. Pentaplex operation allows you to simultaneously view live images, record, playback, backup data, and access streaming video via the network. Monitoring can now be anywhere, anytime in the world from the convenience of your iPhone, Blackberry, Android or Windows Mobile phone. The DVR-43G, DVR-83G and DVR-163G can also provide control of PTZ cameras, making it a perfect match for Channel Vision’s PTZ cameras.

Key Features

• Windows® and Mac® compatible
• Enhanced H.264E compression for recording and web compression- 20% more capacity than last generation
• 3G mobile phone streaming video to iPhone®, Blackberry®, Android® or Windows® Mobile phones
• Internet viewing through Internet Explorer
• Remote viewing Central Management System (CMS) supports up to 16 DVRs with 32 channel viewing
• Real time live display on VGA and BNC video out at the same time
• AVI converter transfers data with a time stamp for use as legal evidence
• Motion detection with individual sensitivity adjustments for each camera
• Audio in and out
• Real time recording at half the D1 resolution (720 x 240)

Technical Specifications

• Video System: NTSC/ PAL switch
• Video Input: 8CH BNC
• Video Output: 1CH BNC
• SPOT Output: 1CH BNC
• Audio Input: 1CH RCA
• Audio Output: 1CH RCA
• Audio Backup: Yes
• Sensor: 8 input/1 output
• RS-485: Pan/ Tilt/ Zoom camera
• USB Port: 2 ports
• Mouse: USB Mouse
• IR Remote Controller: Yes
• HDD Support: SAT HDD x2 (Max. 2TB each)
• Display Division: 1,4,9
• Title: 14 Characters
• Video Compression: H.264
• Audio Compression: ADPCM
• Resolution: 720×480, 720×240, 360×240 (NTSC) 720×576, 720×288, 360×288 (PAL)
• Frame Rate: 60, 120, 120 (NTSC) 50, 100, 100 (PAL)
• Quality: Highest, High, Normal, Basic, Below Basic
• Record Mode: Manual, Schedule, Event (motion detection/sensor)
• Pre-Alarm Recording: 16MB (approximately 10 sec)
• Post-Alarm Recording: 1-999 sec
• Motion Detection: sensitivity 0~10
• Search Mode: Time, Event
• Playback Speed:  fast forward/backward 2x/4x/8x/16x/32x/64x slow forward/backward 1/2x, 1/4x, 1/8x, 1/16x play/pause
• Backup Mode: USB flash driver/ Network/ Optional DVD media
• Network Compression: H.264E
• Network Software: Internet Explorer/ CMS/ 3G Mobile Phone
• Network Users: 5
• Remote Notification: Email message
• Service: TCP/IP, SMTP, DHCP, DDNS, PPPoE
• Daylight Savings: Yes
• Password: 5 Users including 1 administrator user authority selectable
• Event List: 10000
• Key Lock: Yes
• Firmware Update: USB Device
• Dimension: 430mm(W) x 70mm(H) x 360mm(D)
• Power Source: DC12V
• Operating Environment: 30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)
