Automated Control of High and Low Voltage Ventilation Fans

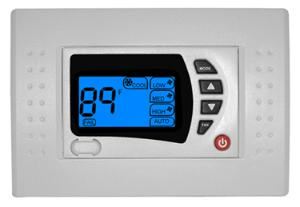

The Advanced Ventilation Controller (TC-AVC) is a programmable thermostat that can be used to control either high or low voltage fans. The controller can be hardwired to thermostatically control fans such as the Cool Components VS-IDF Inline Duct Fan and the VS-RSC Remote System Cooler. Additionally, it can be used to control low voltage fans by hard wiring it to an electrical outlet. This unit will enable the user to choose/program the appropriate set points for any application. The controller is wall mountable (rack mount version is coming soon), fully programmable and has a backlit LCD display to show ambient temperature and make programming simple. In addition to a built-in temperature sensor, an optional 20 foot remote sensor is available for added versatility. This may be used when sensing and controlling the temperature in a projector enclosure, rack or other remote location.
The controller features 5 relays that offer a large amount of flexibility and customization within your system. Two relays are programmable with one intended for fan operations and the other for alarm (all output high voltage only - do not connect low voltage products to the unit). The three fan relays trigger in relation to the user defined temperature set point with relay #1 triggered at the set point, #2 triggered at approximately 6 degrees higher, and #3 triggered at approximately 15 degrees higher than the main set point. For example, if you have an existing rack with high-voltage fans, you could attach primary fans to relay #1 and then secondary fans to relay #2. Venting fans could then be connected to relay #3. Ultimately the two alarm relays, 4 and 5, could be used to sound an audible alarm or power emergency fans to protect against a catastrophic failure if installed, for instance, in a rack full of server and switching equipment.
Please Note: This is a high voltage product. Be sure to contract a licensed electrician to ensure a safe and proper installation according to local codes.
Click HERE to download a copy of the instructions for the TC-AVC
Click HERE to download the cut sheet for the TC-AVC
Features
-
Controls Most High Voltage Fans
-
Can Be Wired to an Outlet to Control Low Voltage Fans
-
Programmable Set Points/Alarm
-
Backlit LCD Display Shows Temperature in Fahrenheit or Celsius
-
Multiple Relays for Flexibility
-
Mounts in a 1-Gang Box
-
Aesthetically Pleasing - Looks Like HVAC Thermostat
-
ETL Listed and CE Mark
General Specifications
Unit Dimensions: 3.15"H x 4.65"W x 1.65"D (8 x 11.8 x 4.2cm)
Construction: White ABS Plastic
Power Specifications
Power Connection: Hardwired High Voltage
Voltage: Two Versions Available: 120V and 240V
Current - Amp: Output Relays Rated at 5 Amps
