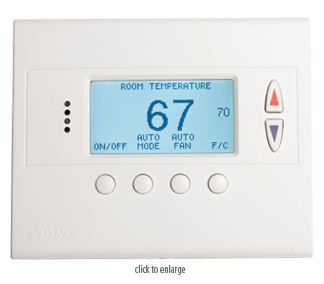

Z-Wave Communicating Thermostat

• All in One Design
• Z-Wave Certified
• Standard or Heat Pump HVAC Systems
• Programmable, 4 x 7 day schedule
• 128×64 Backlit Graphical Display
• 6 Buttons with On Screen Labels
• Remote Control of All Thermostat Functions
• Optional Remote Sensors
• Wall mount or mounts on single-gang junction box

Overview

The T-100R is a Z-Wave wireless digital thermostat, designed to control the majority of HVAC systems. The T-100R contains a robust thermostat interface and is designed for use with communicating systems where remote monitoring and/or remote control are desired.

Thermostat Features

• Graphical LCD with white backlight
• Heating and Cooling Setpoint display
• System Mode (Off, Auto, Heat, Cool)
• Fan Mode display and control (Auto, On)
• On-screen setup of HVAC Type, Fan Type, Changeover type for HP systems, F/C mode and sensor calibration
• 4 x 7 day programmable schedule, multiple schedules
• Fan Cycler feature

Technical Specifications

HVAC System Compatibility

• Central HVAC systems or separate heating/cooling systems with separate RH/RC transformers (split)
• Standard gas/electric HVAC Systems: 2-stage heating, 2-stage cooling
• Heat Pump HVAC Systems: 3-stage heating, 2-stage cooling
• Fan system: Selectable for gas or electric heat systems.
• Heat Pump Change Over valve (reversing valve): Selectable for change over with heat or change over with cool (O or B output)
• Emergency Heat: In Heat pump mode, Emergency Heat mode is selectable from the thermostat
• Compressor short cycle protection delay of 6 minutes (adjustable)
• Automatic heating and cooling changeover

Remote Sensors

• The T-100R supports up to 2 indoor remote sensors
• Remote sensor can replace internal sensor or provide averaging

Wiring Requirements

• 18 AWG
• Uses standard thermostat connections (C, R, W1,W2, Y1, Y2, G)

Power Requirements

• 24VAC Note: Requires both 24VAC (R) and 24VAC common (C) wires from the HVAC System

Dimensions

• 6”x4”x3/4”

Model Number

• T-100R Z-Wave Thermostat PN: T-100R
