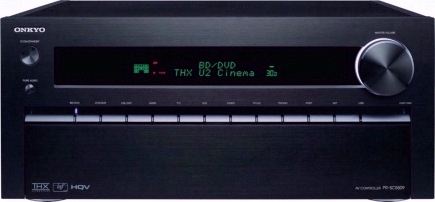

Onkyo PR-SC5509

AV Controller

Onkyo’s Flagship Pre-Amp Handles It All

Boasting the premium quality assurance of THX® Ultra2 Plus™, the PR-SC5509 is the ultimate conduit for all your music, games, and movies. Whether from a Blu-ray or SACD player, from your PC or the web, from a game console or an iPhone, your entertainment is brought stunningly to life. Eight HDMI® inputs for high-definition formats such as 3D video and lossless audio and an Ethernet jack for home-network audio make system integration a breeze. HDMI terminals, 9.2-channel XLR outs, and stereo XLR inputs are gold-plated for pristine signal transfer. Further evidence of audiophile build quality comes in the form of a customized toroidal transformer, separate audio/video transformers, and an anti-vibration chassis. Processing is also topnotch. For video, an HQV® Vida™ processor and Qdeo™ technology work to eliminate noise and upscale video to eye-popping 4K resolution. On the audio side, Audyssey MultEQ® XT32 and DTS Neo:X™ offer incredible flexibility for creating an immersive room-matching soundstage. Partnered with a high-end 9-channel power amp and surround speakers, the PR-SC5509 keeps the high-quality entertainment flowing.

Special Features

• Eight 1080p capable HDMI inputs (V1.4a repeater) including 1 Front with 2 outputs
• THX Ultra2 Plus Certification
• Finest 192kHz/32bit Burr-Brown DACs
• isf Certified
• HDMI 1080p video upconversion by HVQ Vida 1900
• TrueHD/DTS-HD decoding to support the latest Blu-ray technology
• 9.2-Channel Balanced Line-Level XLR Pre Outs (with Front Bi-Amping Capability)
• Front and Rear Panel USB Inputs for Memory Devices and iPhone®/iPod® Models (Enables Display of Album Artwork)
• Optional iPod Dock / HDradio module via U.Port
• 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
• Audyssey MultEQ XT 32w/ Dynamic EQ & Dynamic Volume

Product Specifications

Controller Section

• THD+N (Total Harmonic Distortion + Noise): 0.05% (20 Hz–20 kHz, Half power)
• Input Sensitivity and Impedance
  • Line: 200 mV/47 k-ohms
  • Phono (MM): 2.5 mV/47 k-ohms
• Rated RCA Output Level and Impedance: 1.0 V/470 ohms (Pre out)
• Maximum RCA Output Level and Impedance: 5.5 V/470 ohms (Pre out)
• Rated XLR Output Level and Impedance: 2.0 V/470 ohms (Pre out)
• Maximum XLR Output Level and Impedance: 11.0 V/470 ohms (Pre out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
• Tone Control
  • Bass: ±10 dB, 50 Hz
  • Treble: ±10 dB, 20 kHz
• Signal-to-Noise Ratio
  • Line, IHF-A: 110 dB
  • Phono MM, IHF-A: 80 dB

Video Section

• Input Sensitivity/Output Level and Impedance
  • 1 Vp-p/75 ohms (Component & SVideo Y)
  • 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
  • 0.28 Vp-p/75 ohms (S-Video C)
  • 1 Vp-p/75 ohms (Composite)
• Component Video Frequency Response: 5 Hz–100 MHz (-3 dB)

Tuner Section

• Tuning Frequency Range
  • FM: 87.5 MHz–107.9 MHz
  • AM: 530 kHz–1,710 kHz
• FM/AM/SIRIUS Preset Memory: 40

General

• Input Sensitivity and Impedance
• Line: 200 mV/47 k-ohms
• Phono MM: 2.5 mV/47 k-ohms
• Output Level and Impedance: Rec out 200 mV/470 ohms
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response:  5 Hz-100 kHz/+ 1 dB - 3 dB (LINE)
• Tone Control: ± 10 dB, 50 Hz (Bass), ± 10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 110 dB(Line, IHF-A), 80 dB(Phono, IHF-A)
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 1.2 A
• Dimensions (W x H x D): 17-1/8" x 7-13/16" x 17-7/8" (435 x 198.5 x 453.5 mm)
• Weight: 30.9 lbs (14.0 kg)
