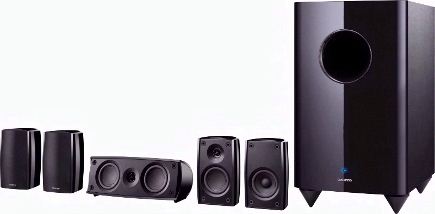

Onkyo SKS-HT690

Matched set of satellite speakers and powered subwoofer

Round Out Your Home Theater with Compact Surround Sound

Introducing an affordable speaker set that will bring a deeper dimension to your movies, games, and music. Comprising a powered subwoofer, two-way front and center speakers, and full-range satellites—all gloss-finished—the SKS-HT690 delivers lifelike surround sound with finesse. Here, style is backed by serious substance. Subtle front-on curves are complemented by a rounded rear section that counteracts unwanted standing waves. Cradle one of these speakers in your palm and you’ll feel a reassuring heft. Reason? It’s Onkyo’s newly developed high-density resin, which provides superb rigidity and resistance to vibration. The down-firing subwoofer, meanwhile, employs a 10" (25 cm) cone to deliver a tight and balanced low-end.

Product Specifications

Front Speakers

• Type: 2-Way, Acoustic Suspension
• Woofer: 3 1/4" (8 cm) Cone Woofer
• Tweeter: 1" (2.5 cm) Balanced-Dome
• Frequency Response: 70 Hz-50 kHz
• Max. Power: 130 W
• Nominal Impedance: 6 ohm
• Dimensions (W x H x D): 4" x 6 11/16" x 4 1/8" (102 x 170 x 105 mm)
• Weight: 2.2 lbs. (1.0 kg)

Surround Speakers

• Type: Full-Range, Acoustic Suspension
• Woofer: 3 1/4" (8 cm) Cone
• Frequency Response: 80 Hz-20 kHz
• Max. Power: 130 W
• Nominal Impedance: 6 ohm
• Dimensions (W x H x D): 4" x 6 11/16" x 4 1/8" (102 x 170 x 105 mm)
• Weight: 2.0 lbs. (0.9 kg)

Center Speaker

• Type: 2-Way, Acoustic Suspension
• Woofer: 3 1/4" (8 cm) Cone x 2
• Tweeter: 1" (2.5 cm) Balanced-Dome
• Frequency Response: 70 Hz-50 kHz
• Max. Power: 130 W
• Nominal Impedance: 6 ohm
• Dimensions (W x H x D): 10 7/8" x 4 5/16" x 4 5/16" (277 x 110 x 110 mm)
• Weight: 3.7 lbs. (1.7 kg)

Subwoofer

• Type: Bass Reflex Powered
• Woofer: 10" (25cm) Cone
• Frequency Response: 25 Hz-150 kHz
• Sensitivity: 550 m/V
• Max. Power: 230 W
• Nominal Impedance: 20 k-ohms
• Dimensions (W x H x D): 10-13/16" x 19-15/16" x 16-3/16"
• Weight: 25.6 lbs. (11.6 kg)
