RTI KX7

In-Wall Universal Controller

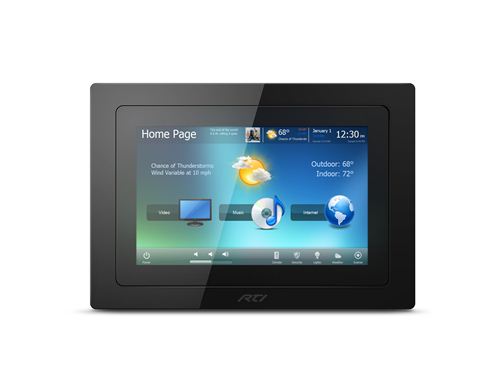

The extraordinary KX7 is packed full of features for complete control of entertainment, environment and security systems in any residential or commercial installation. The wall-mounted touchpanel has a slim profile, framing a control interface that can be custom tailored for every installation. Taking the user experience to a new level, the vivid 7” LCD touch screen even allows screen swiping for page navigation. Meanwhile dealers will love the powerful capabilities at their disposal, such as the built-in infrared communication capability, allowing for direct control of electronics without a control processor. In addition, video inputs make it possible to view analog video while an Ethernet connection enables even more functionality, such as viewing IP security cameras, surfing the web and advanced two-way control.

Description

The KX7 takes touch panel control to new heights with an infrared output for control of devices up to 1000 feet away.* When combined with RTI accessory products, the KX7 offers intuitive two-way communication for control and feedback from compatible electronic devices such as music servers, HVAC, lighting, and more.

The sleek and sophisticated design of the KX7 features a beautiful 7” WVGA (800x480) multi-touch capacitive touch screen to display the completely customizable control interface. In addition, composite, S-video and component video inputs provide crystal clear video at up to 576p resolution. The KX7 is outfitted with both wired and wireless Ethernet, providing convenient access to advanced capabilities, including two-way control of devices, viewing motionJPEG digital video, web browsing and system file updating. The KX7 10/100 Base-T connection even supports PoE (Power over Ethernet) to reduce cabling requirements and simplify installations.

* Support for direct control from the KX7 via RS-232 communication will be added in a future firmware update.

NOTE: Integration Designer software only available to authorized RTI dealers.

Key Features

• Beautiful 7” 800x480 WVGA LCD with integrated multi-touch capacitive touch
• screen that allows screen swiping for page navigation.
• Composite, S-Video or Component video inputs allow viewing analog video at
• up to 480i/576i/480p/576p resolution.
• Integrated 10/100 Base-T (with PoE) and 802.11 wireless Ethernet.
• Built-in high output IR port for direct control.
• Powered using power supply, CB8 connecting block or PoE (Power over
• Ethernet).
• Optional modules/processors provide additional control capabilities including
• two-way communication via RS-232/IP, sensing, IR and relay control.
• USB and Ethernet Programming.
• Stylish low-profile faceplate available in black or white (ships with white).
• Integrated mounting wings for easy retrofit installations (metal back box also
• available separately).

Specifications

• Power: +9VDC to +16VDC, 1A max or PoE (Using Class 3 PoE Ethernet router/injector)
• Power Management: Adjustable backlight brightness/power down time
• Touchscreen Display
  • High-brightness color TFT LCD
  • WVGA (800x480 pixels) with 65K colors
  • Integrated high-resolution capacitive touchscreen
• Display Size: 7.0 in (177mm) diagonal
• Display Backlight: Dual CCFL, 300nit
• Infrared Output Port
  • 200mA output
  • Drives up to 1000 ft (300 m) of wire
• Ethernet Port: 10/100 Base-T with Power-over-Ethernet (Using Class 3 PoE Ethernet router/injector)
• Wireless Ethernet: 802.11b/g
• Operating Temperature: +32°F to +122°F (0°C to +50°C)
• Operating Humidity: 5% to 95% Non-condensing
• Total System Memory: 128M Bytes Flash (non-volatile) memory
• Device Capability: Total number of devices is limited only by memory
• Macro Capability
  • Unlimited steps in a single macro
  • Total number of macros is limited only by memory
  • Macro capability on every button
• Communications USB programming port
• Video Input
  • 3 BNC Connectors
  • Composite, S-Video or Component analog video inputs
  • NTSC/PAL/SECAM
• Enclosure: High-impact molded ABS plastic
• Front Plate: High-impact molded ABS plastic
• Mounting: Integrated mounting wings, or screws through front plate
• Installation Cut-Out (W x H): 7.7 in (195mm) x 5.6 in (143mm)
• Outer Bezel (W x H): 8.5 in (217mm) x 5.9 in (151mm)
• Total Depth in Wall: 1.4 in (36mm), 2.1 in (53mm)with Video Connector
• Weight: 1.4 lbs (634g)
• Warranty: One Year (Parts & Labor)

All specifications subject to change without notice.
