VT-PIRC2/H
Vitek
VT-PIRC2/H

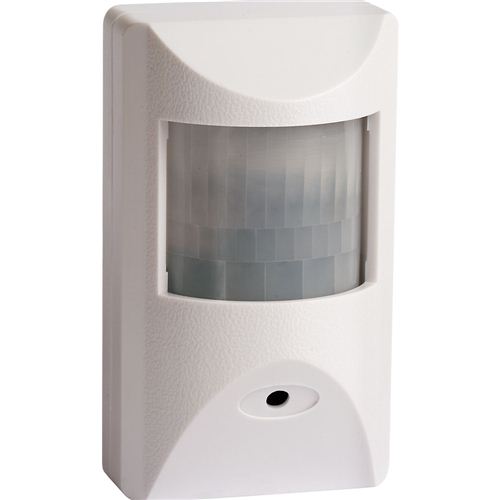

Vitek VT-PIRC2/H - Color PIR Camera w/Working Motion Detection- 600 TVL- 3.8mm Lens- 12VDC- Complete with wall/ceiling mount. U/M: each
Arizona: In Stock
Vegas: Special Order
Out of Stock
Retail: $196.00 Each




VT-PIRC2/H
VT-PIRC2/H
Color PIR Camera w/Working Motion Detection & 600 TVL 12VDC

  • 1/3" Sony Color CCD Image Sensor with 600 TV Lines
  • 0.5 Lux Sensitivity
  • Pinhole 3.8mm/f2.0 Lens Included
  • NC/C/NO Alarm Output
  • Working 100° Motion Using 58 Beams Within 3 layers (35' x 35' Coverage Area)
The VT-PIRC2/H is a motion activated or continuous imaging camera that incorporates a Sony Color CCD camera with a PIR motion sensor. It can be used as an accessory to an alarm system or as a stand-alone monitoring device. Vitek PIR cameras are an excellent choice for use in covert or hidden camera applications.
VT-PIRC2/H Specifications:
Image Device 1/3” Sony Color CCD
Effective Pixels 811 x 508
Resolution 600 TV Lines
Minimum Illumination 0.5 Lux
PIR Detection Range 100° / 35' x 35' Coverage Area
PIR Alarm Output NC/N/NO
AGC >18db
S/N Ratio More Than 48dB
Video Output Composite: 1.0 Vp-p / 75 Ohm
Auto Electronic Shutter 1/60 to 1/100,000 sec.
Standard Pinhole Lens 3.8mm / F2.0
Power Source 12VDC (300mA Regulated)
Power Consumption 150mA
Operation Temperature 14°F ~ 140°F (-10°C ~ 60°C)
Humidity 0-95%
Dimensions (WxHxD) 2.75” x 4.72” x 1.69” / 70mm x 120mm x 43mm
