VT-PTZ10
Vitek
VT-PTZ10

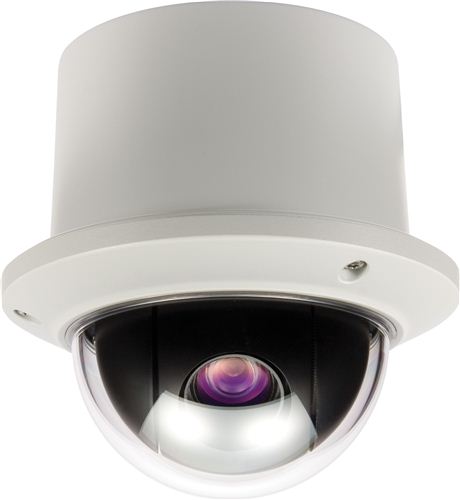

Vitek VT-PTZ10 - Ultra-Compact PTZ Camera w/10x Optical Zoom (Flush Mnt Config). U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $1260.00 Each




VT-PTZ10
VT-PTZ10
Ultra-Compact PTZ Camera with 10x Optical Zoom (Flush Mnt Config.)

  • Built-In 3.8-38mm Lens with 10x Optical / 10x Digital Zoom.
  • High Performance 1/4” CCD with 500 TV Lines.
  • True Day/Night function with ICR.
  • 128 Presets programmed with view direction, zoom, and BLC.
  • 4 Patterns record and play back user preference of surveillance path up to 120º sec.
  • 8 Scans: 8 speed steps from slow to medium panning with smooth Diagonal Scan.
  • 4 Tours: Each tour consists up to 32 Presets, Patterns, and/or Scans.
  • Fully Gasketed IP68 Rated Weatherproof Design
  • 4 Alarm inputs with 1~4 priority / 1 Auxiliary output with programmable NC & NO.
  • 8 Privacy Zones: Video off or up to 8 masked blocks
  • 64 steps of variable speed from 0.4º/sec to 90º/sec. Max manual speed 190º/sec with Turbo key pressed, Preset speed is 380º/sec.
  • Built-in RS-485 receiver driver.
  • Built-in power-line surge protection and lightning protection.
  • Optional Wall Mount, Indoor/Outdoor pendant housing.
VT-PTZ10 Specifications:
Image Sensor 1/4" Interline Transfer CCD(Sony)
Picture elements NTSC : 768x494 Approx. 380K pixels / PAL : 752x582 Approx. 440K pixels
Horizontal Resolution 500 TV Lines
Lens 10x optical zoom with auto focus / 10x digital zoom / F1.8 to F3.0, f=3.8mm to 38mm
View angle Approx. 51.2° (WIDE end) to 5.58° (TELE end)
Minimum Illumination 0.7 lux(F1.8,normal shutter speed) / 0.02 lux (F1.8, IR Cut Filter Removed) / 0.005 lux (F1.8, DSS Auto with IR Cut Filter Removed)
S/N ratio more than 50dB
Certification CE EMC, FCC CLASS A
Input Voltage 18 to 30 VAC; 24 VAC nominal, built-in power-line surge
Power Requirement 24 VAC/VDC 700mA
Power Consumption Maximum 15W / 30W(Heater Use)
Alarm Output 1 Normal relays 24 VDC/1A Max (selectable NC/NO)
Alarm Input 4 Normal dry contact (selectable NC/NO)
Control RS-485 baud rate:2400~38400bps (default:9600bps)
Access Time 0.75 second maximum preset recall time
ID (Camera Address) Physical 99, Logical 3999
Pan Angle 360° continuous rotation
Speed 0.4° to 90°/sec. (proportional to zoom) / 190°/sec. maximum (with Turbo key pressed) / Preset Speed : 380°/sec
Repeatability 0.2°
Flip Rotate 180° at bottom of tilt
Autoscan 4 auto scan include vector scan/1 Auto Pan
Preset Position 128 positions with camera status (16-character title)
Tour 4 tours
Pattern 4 patterns, 120 second
On-Screen Display Displays camera ID and area name on screen
Operating temperature 0°C to 50°C (32°F to 122°F) / -30°C to 50°C (-22°F to 122°F)
Operating humidity 0 to 90%RH (non-condensing)
Storage temperature -20°C to 60°C (4°F to 140°F)
Dimension (W x H) Dimensiones
Weight Approx. 2.4lbs. (1.2 kg)
