VT-PTZ12W
Vitek
VT-PTZ12W

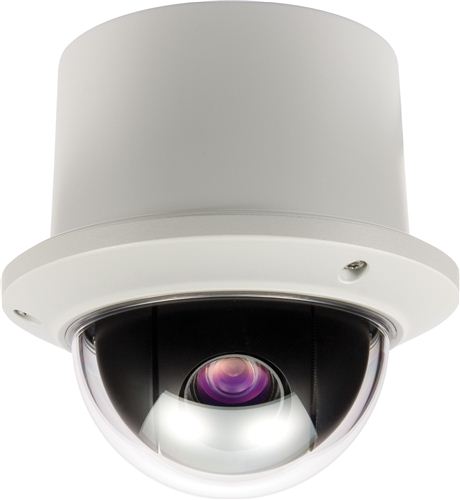

Vitek VT-PTZ12W - 12X Mighty Dome PTZ Camera. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $1225.00 Each




VT-PTZ12W
VT-PTZ12W
Ultra-Compact PTZ Camera with WDR & 12x Optical Zoom

  • High Performance 1/4” CCD with 550 TV Lines
  • Built-In 3.7-44mm Lens with 12x Optical / 12x Digital Zoom
  • True Day/Night function with ICR
  • 128 Presets programmed with view direction, zoom, and BLC
  • 4 Patterns record and play back user preference of surveillance path up to 120º sec.
  • 8 Scans: 8 speed steps from slow to medium panning with smooth Diagonal Scan
  • 4 Tours: Each tour consists up to 32 Presets, Patterns, and/or Scans
  • Fully Gasket Sealed IP68 Rated Weatherproof Design
  • 4 Alarm inputs with 1~4 priority / 1 Auxiliary output with programmable NC & NO
  • 8 Privacy Zones: Video off or up to 8 masked blocks
  • 64 steps of variable speed from 0.4º/sec to 90º/sec. Max manual speed 190º/sec with Turbo key pressed, Preset speed is 380º/sec.
  • Built-in RS-485 receiver driver.
  • Built-in power-line surge protection and lightning protection
  • Built-in Heater/Blower for use in Extreme Temperatures
VT-PTZ12W Specifications:
Image Sensor 1/4” Interline Transfer CCD
Horizontal Resolution 550 TV Lines
Minimum Illumination 0.6 lux / 0.01 lux (ICR ON)
Lens 3.7mm to 44mm @ F1.6 to F2.5
View angle Approx. 48° (WIDE end) to 2.8° (TELE end)
Optical Zoom 12x
Digital Zoom 12x
Shutter Speed 1/1 ~ 1/10,000
S/N ratio more than 50dB
Sync System Int/Ext, V-Phase Remote Control
Scanning System 2:1 Interface
Focus Auto/Manual
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium, One Push, Manual
Iris Control Auto/Manual
WDR (Wide Dynamic) YES
BLC ( Back Light Compensation) ON/OFF
DNR (Digital Noise Reduction) 3DNR
DIS (Digital Image Stabilizer) N/A
Pan Angle 360º Continuous
Manual Pan Speed/sec 0.4~90º/sec
Autoscan 380º/sec
Tilt Travel -5º ~ 90º/sec 190º/sec Max (w/Turbo)
Manual Tilt Speed/sec 0.4° to 90°/sec. / 190°/sec. maximum (Turbo)
Preset Tilt Speed/sec 380°/sec
Communication RS-485 baud rate:2400~38400bps (default:9600bps)
Preset 128 positions with camera status (16-character title)
Zone Title 24 Area Names
Privacy Zone 8 Blocks in a Screen
Title Character 20 Character per Line / 11 Lines (Max)
Tour 4 tours
Pattern 4 patterns, 120 second
Auto Pan 4 auto scan include vector scan/1 Auto Pan
Flip Digital Quick Turn
Alarm (Input/Output) 4/1
Power Requirement 24 VAC/VDC 700mA
Dimension (W x H) 5.65” x 5.51”
