VT-SMKC1/H
Vitek
VT-SMKC1/H

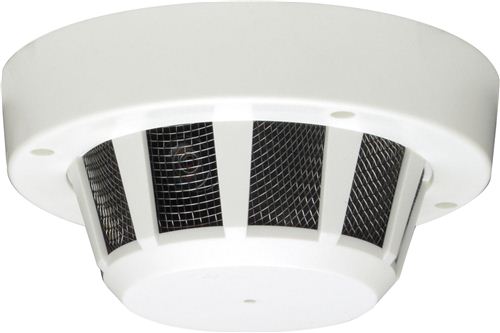

Vitek VT-SMKC1/H - Side View Color Smoke Detector Camera w/550 TVL- 3.6mm Standard Lens- 12VDC. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $182.00 Each




VT-SMKC1/H
VT-SMKC1/H
Side View Color Smoke Detector w/550 TVL 12VDC

  • 1/3" Sony High Density EXVIEW CCD Image Sensor w/550 TV Lines
  • Minimum Illumination Of 0.3 Lux
  • Camera Mounted on an Adjustable Gimbal to help Achieve the Perfect Viewing Angle
  • f3.6mm (Optional 2.8mm to 25mm Available)
  • Dimensions: 5.12” (OD) X 2.29” (H)
Discreet surveillance made easy. Simple plug and play camera allows for vertical adjustment to obtain the optimum viewing angle with ease. Comes standard with a 3.6mm wide angle lens. 2.8mm, 6mm, 8mm, and 12mm lenses are also available.
VT-SMKC1/H Specifications:
Image Device 1/3" Sony High Density EXVIEW CCD Image Sensor
Effective Pixels 768 x 492
Resolution 550 TV Lines
Minimum Illumination 0.3 Lux
S/N Ratio More Than 48dB
Electronic Shutter 1/60 to 1/100,000 sec.
AGC On
Sync. Mode Internal Sync.
Scanning System 2:1 Interlace
Gamma Correction 0.45
Horizontal Sync. Frequency 15.734KHz
Vertical Sync. Frequency 60Hz
Video Output Composite: 1.0 Vp-p / 75 Ohm
Power Source 12VDC
Power Consumption 300mA
Operation Temperature -10° ~ 50°C (14° ~ 122°F) Less Than 80% RH
Standard Lens f3.6mm (Optional 2.8mm to 25mm Available)
Dimensions (W x H) 5.12" x 2.29" (130 x 58mm)
Weight 12.34 Oz. / 350 g. / 0.77 Lbs.
